Tuote

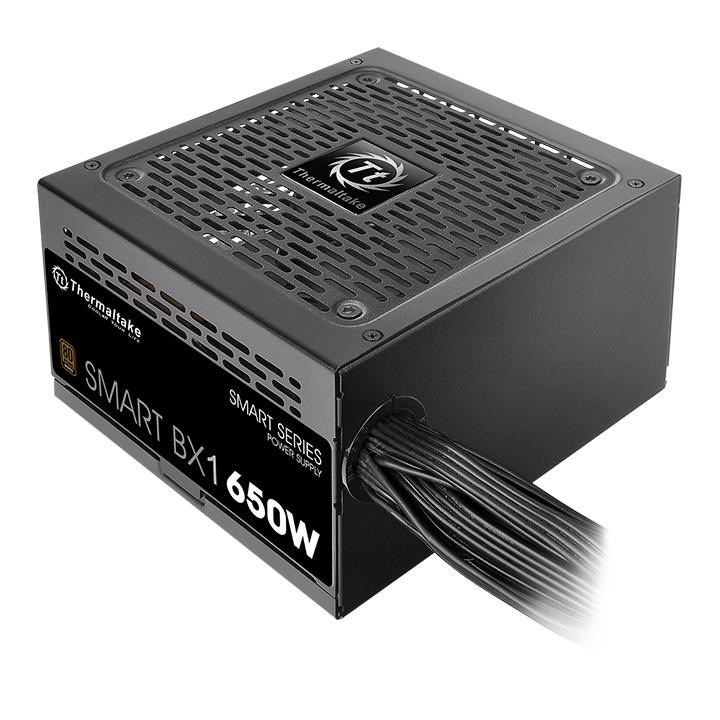

Thermaltake Smart BX1 power supply unit 650 W 24-pin ATX ATX Black

Tuotetiedot
SKUZDLTHEOBU0070
Design
Product colourBlack
Cooling typeActive
Number of fans1 fan(s)
Fan diameter12 cm
On/off switchYes
Power
Power Factor Correction (PFC) typeActive
Max output current (+12V)48 A
Max output current (-12V)0.5 A
Input current12 A
Combined power (+3.3V)110 W
Combined power (+5V)110 W
AC input voltage100 - 240 V
Max output current (+5V)17 A
Combined power (+5Vsb)12.5 W
Combined power (+12V)576 W
Total power650 W
Max output current (+3.3V)23 A
AC input frequency50 - 60 Hz
Max output current (+5Vsb)2.5 A
Combined power (-12V)6 W
Peak power80 W
Operational conditions
Storage relative humidity (H-H)10 - 95%
Storage temperature (T-T)-40 - 55 °C
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)5 - 40 °C
Weight & dimensions
Height86 mm
Depth140 mm
Width150 mm
Performance
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Bronze
Mean time between failures (MTBF)100000 h
ATX version2.3
PurposePC
EPS version2.92
Packaging content
Cables includedCPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Ports & interfaces
PCI Express power cable length50 cm
SATA power cable length150 mm
Motherboard power connector24-pin ATX
Cabling typeNon-Modular
CPU power cable length1 mm
Motherboard power cable length60 cm
PCI Express power connectors (6+2 pin)2
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)4
CPU power connector (4+4 pin)Yes
Peripheral (Molex) power cable length500 mm
PCI Express connectorYes
