Tuote

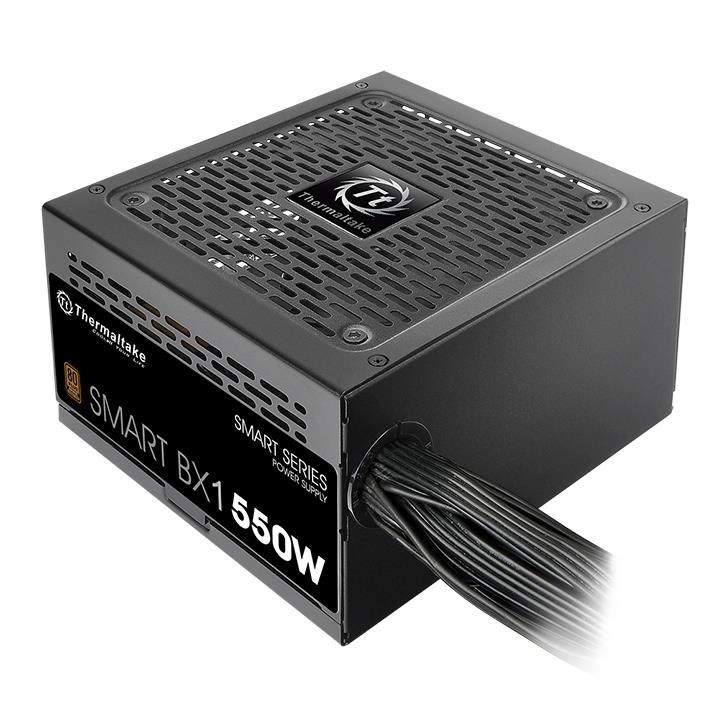

Thermaltake Smart BX1 power supply unit 550 W 24-pin ATX ATX Black

Tuotetiedot
SKUZDLTHEOBU0069
Design
On/off switchYes
IlluminationNo
Fan diameter12 cm
Fan locationTop
Cooling typeActive
Number of fans1 fan(s)
Product colourBlack
Power
Efficiency88%
AC input frequency50 Hz
Combined power (+12V)456 W
Power Good signal delay range100 - 500 ms
Max output current (+5V)16 A
Combined power (+5Vsb)12.5 W
Max output current (+5Vsb)2.5 A
Peak power660 W
AC input voltage230 V
Total power550 W
Combined power (-12V)6 W
Power Factor Correction (PFC) typeActive
Max output current (+12V)38 A
Combined power (+5V)105 W
Max output current (-12V)0.5 A
Input current10 A
Combined power (+3.3V)105 W
Max output current (+3.3V)21 A
Maximum input current (@220V)10 A
Hold time16 ms
Operational conditions
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)5 - 40 °C
Storage relative humidity (H-H)10 - 95%
Storage temperature (T-T)-40 - 55 °C
Weight & dimensions
Width150 mm
Depth140 mm
Height86 mm
Performance
ATX version2.3
EPS version2.92
SafetyCE, CB, TUV, EAC, RCM
Noise level37.6 dB
80 PLUS certification80 PLUS Bronze
Mean time between failures (MTBF)100000 h
PurposePC
Power supply unit (PSU) form factorATX
Ports & interfaces
Floppy disk drive connectorYes
Floppy drive power connector1
CPU power cable length65 cm
CPU power connector (4+4 pin)Yes
Motherboard power connector24-pin ATX
Motherboard power cable length60 cm
Peripheral (Molex) power cable length500 mm
Cabling typeNon-Modular
Number of SATA power connectors6
PCI Express connectorYes
Peripheral (Molex) power connectors (4-pin)4
PCI Express power connectors (6+2 pin)2
SATA power cable length500 mm
