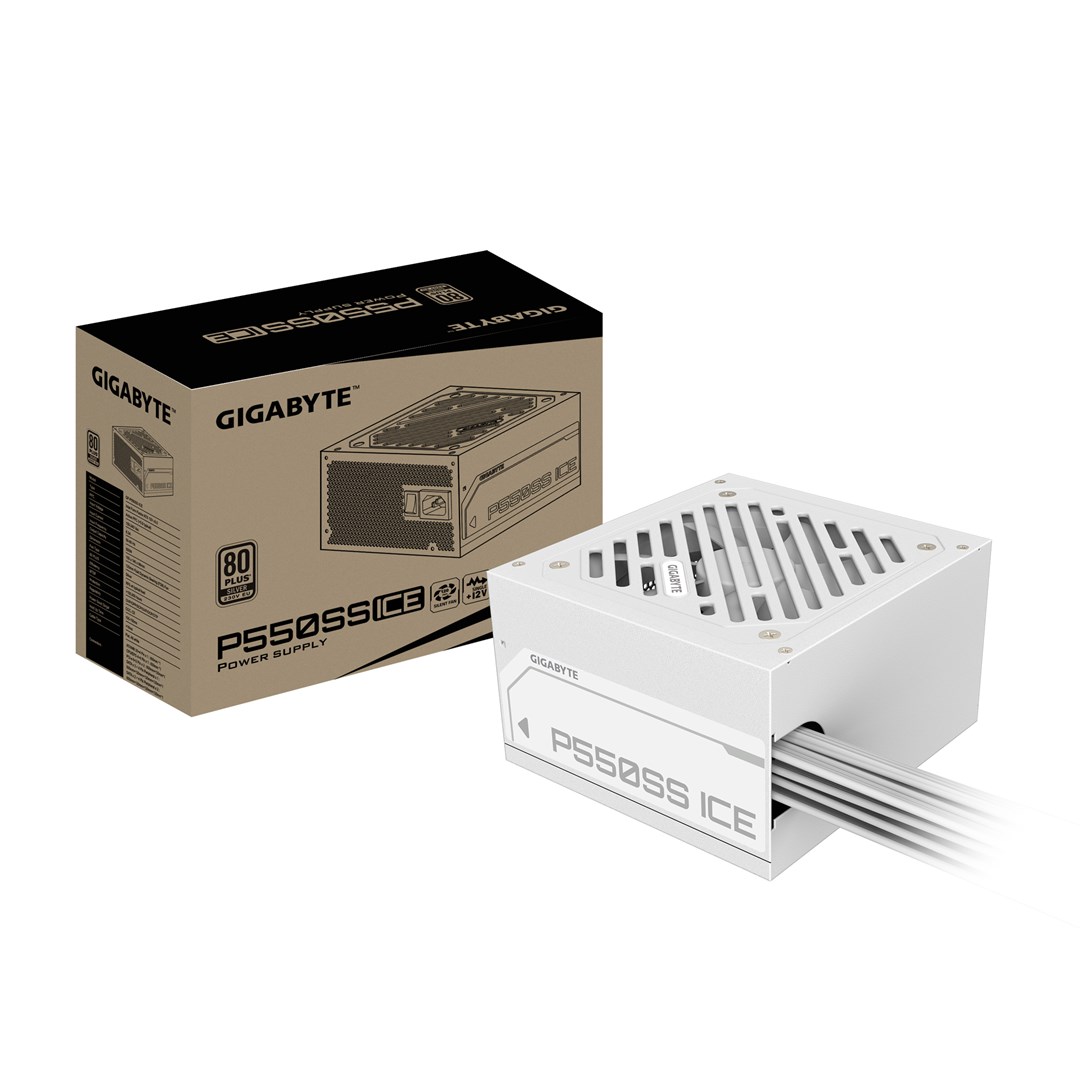

GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug

Tuotetiedot
SKUZDLGIGOBU0038
Design
Fan diameter12 cm
Cooling typeActive
Number of fans1 fan(s)
Product colourWhite
On/off switchYes
Fan locationTop
Power
Power protection featuresShort circuit
Total power550 W
Input current6.3 A
AC input voltage155-240 V
Efficiency90%
AC input frequency50/60 Hz
Combined power (-12V)3.6 W
Max output current (+12V)45.8 A
Combined power (+5Vsb)15 W
Power Factor Correction (PFC) typeActive
Max output current (+5V)20 A
Hold time16 ms
Combined power (+5V)100 W
Combined power (+12V)549.6 W
Combined power (+3.3V)100 W
Max output current (+5Vsb)3 A
Max output current (+3.3V)20 A
Max output current (-12V)0.3 A
Power Good signal delay range100 - 150 ms
Weight & dimensions
Height86 mm
Weight1.95 kg
Width140 mm
Depth150 mm
Performance
80 PLUS certification80 PLUS Silver
Mean time between failures (MTBF)100000 h
PurposePC
Power supply unit (PSU) form factorATX
Bearing technologyBall bearing
ATX version3.1
Packaging data
Package typeBox
Package height117 mm
Package width254 mm
Package weight2.11 kg
Package depth206 mm
Ports & interfaces
Floppy disk drive connectorYes
Peripheral (Molex) power connectors (4-pin)4
ATX power connector (20+4 pin)Yes
PCI Express connectorYes
PCI Express power connectors (6+2 pin)2
Cabling typeNon-Modular
CPU power connector (4+4 pin)Yes
Floppy drive power connector2
Number of SATA power connectors5
Motherboard power cable length60 cm
Motherboard power connector20+4 pin ATX
Logistics data
Warranty period3 year(s)
