Tuote

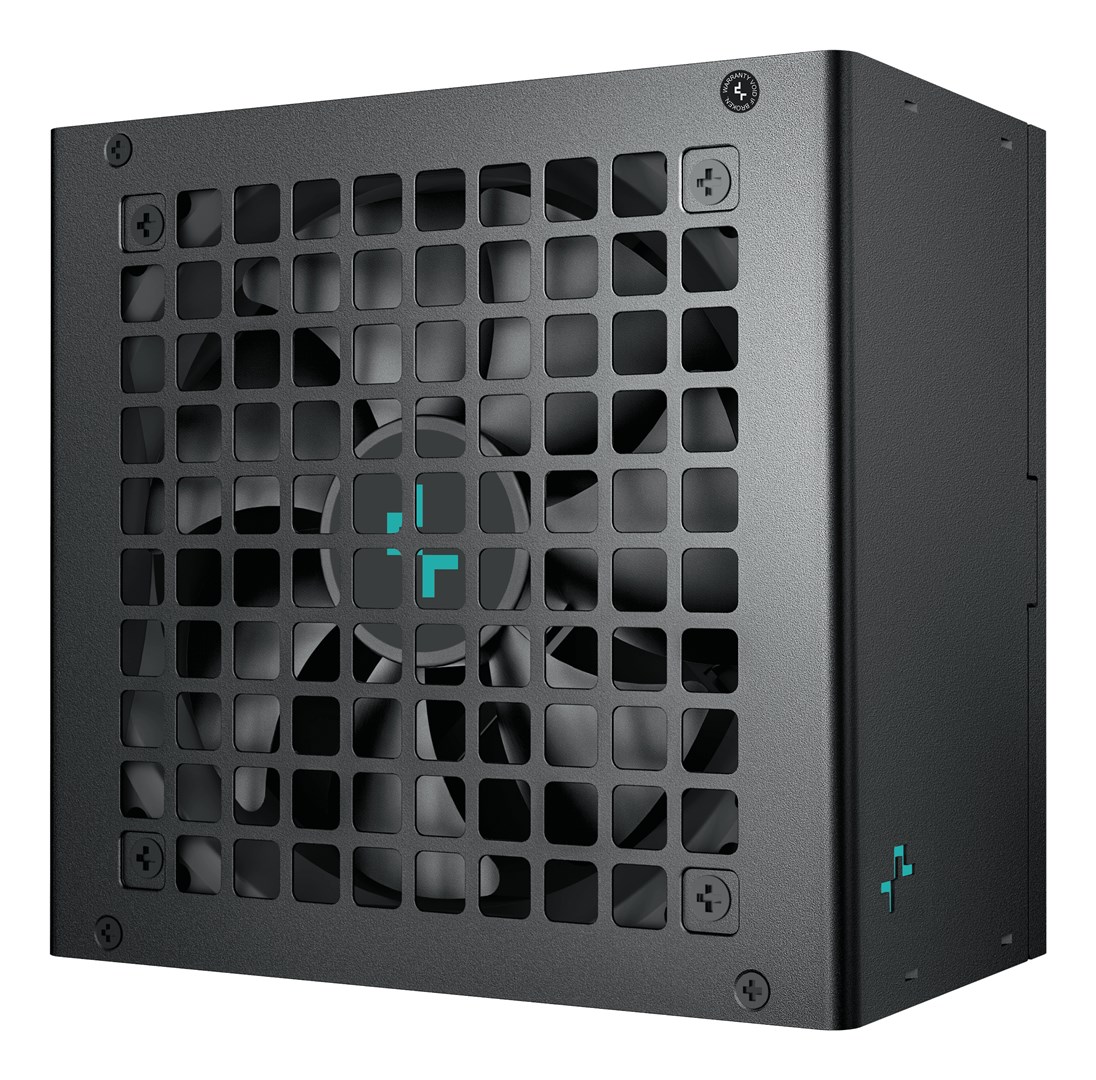

DeepCool PL650D power supply unit 650 W 20+4 pin ATX ATX Black

Tuotetiedot
SKUZDLDECOBU0085
Technical details
Sustainability complianceYes
Sustainability certificatesErP
Design
Fan locationTop
Product colourBlack
Fan diameter12 cm
On/off switchYes
Cooling typeActive
Number of fans1 fan(s)
Power
Combined power (+3.3V)100 W
Max output current (+12V)54 A
Power Good signal delay range100 - 150 ms
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Combined power (+12V)648 W
Max output current (+5V)20 A
Power Factor Correction (PFC) typeActive
Hold time16 ms
Combined power (+5V)100 W
Max output current (+3.3V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Power protection featuresUnder voltage
Efficiency85%
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Input current9 - 4.5 A
Total power650 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Weight & dimensions
Depth140 mm
Width150 mm
Height86 mm
Performance
ATX version3.0
Bearing technologyHYB
80 PLUS certification80 PLUS Bronze
Mean time between failures (MTBF)100000 h
PurposePC
Power supply unit (PSU) form factorATX
Packaging data
Package typeBox
Certificates
Compliance certificatesRoHS
Ports & interfaces
SATA power cable length550
Motherboard power connector20+4 pin ATX
ATX power connector (20+4 pin)Yes
Motherboard power cable length55 cm
CPU power connector (4+4 pin)Yes
Number of SATA power connectors6
PCI Express power connectors (6+2 pin)3
PCI Express power connectors (16-pin)1
Cabling typeNon-Modular
Peripheral (Molex) power connectors (4-pin)2
Logistics data
Country of originChina
