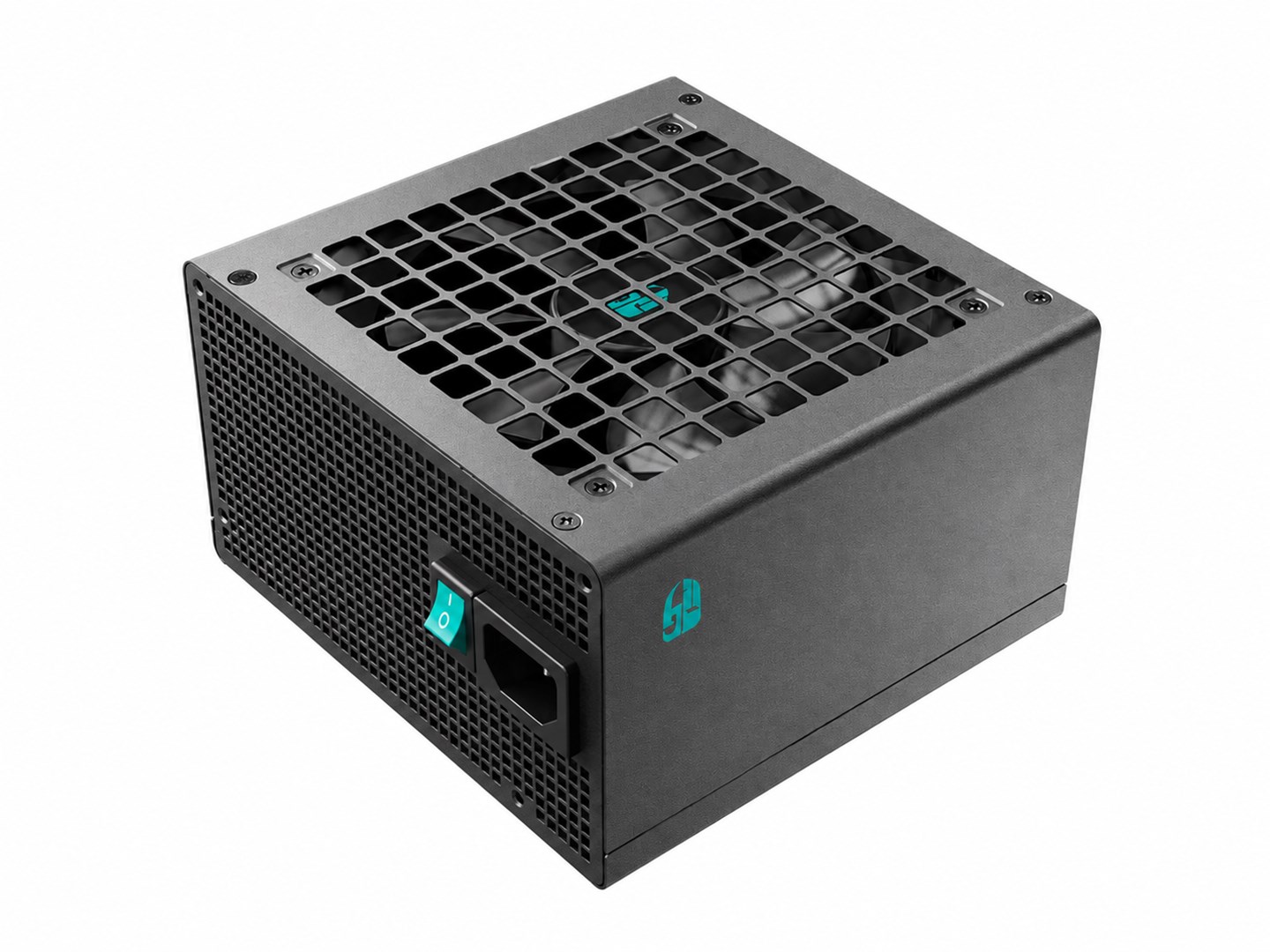

PC Power Supply DEEPCOOL PF550X-FE, Black

Tuotetiedot
SKUZDLDECOBU0082
Technical details
Sustainability complianceYes
Design
Product colourBlack
Fan locationLower
Fan diameter12 cm
Cooling typeActive
On/off switchYes
Number of fans1 fan(s)
Power
AC input frequency50/60 Hz
Input current8 A
AC input voltage100 - 240 V
Total power550 W
Power Factor Correction (PFC) typeActive
Power protection featuresOCP (overcurrent protection)
Power Good signal delay range100 - 150 ms
Efficiency85%
Max output current (+12V)62.5 A
Combined power (+12V)550 W
Operational conditions
Operating temperature (T-T)0 - -40 °C
Weight & dimensions
Height86 mm
Depth140 mm
Width150 mm
Performance
Bearing technologyHypro Bearing
80 PLUS certification80 PLUS Bronze
Mean time between failures (MTBF)1000000 h
PurposePC
ATX version2.4
Power supply unit (PSU) form factorATX
Packaging data
Package typeBox
Certificates
Compliance certificatesBIS
Ports & interfaces
ATX power connector (20+4 pin)Yes
PCI Express power connectors (6+2 pin)2
Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)2
Motherboard power cable length50 cm
CPU power connector (4+4 pin)Yes
Cabling typeNon-Modular
