Tuote

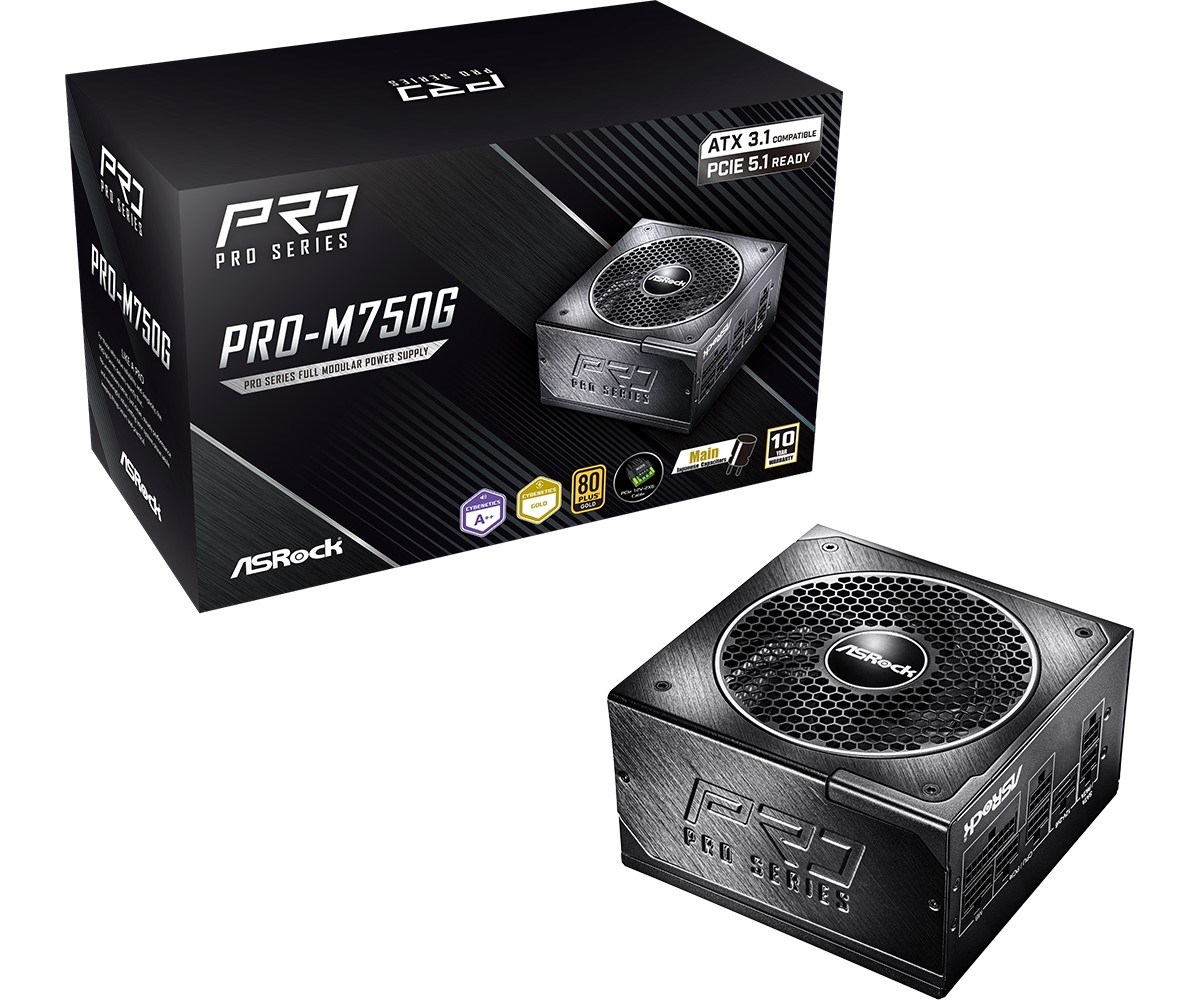

Asrock PRO-M750G 750W 80 PLUS Gold power supply unit

Tuotetiedot
SKUZDLASROBU0028
Design
Cooling typeActive
Product colourBlack
Number of fans1 fan(s)
Fan diameter13.5 cm
Power
Power protection featuresOCP
Combined power (-12V)3.6 W
Combined power (+12V)750 W
Max output current (+12V)62.5 A
Combined power (+3.3V)120 W
Total power750 W
AC input frequency50/60 Hz
Max output current (+5Vsb)3 A
Max output current (-12V)0.3 A
Max output current (+5V)20 A
Input current10 - 5 A
Combined power (+5V)120 W
AC input voltage100 - 240 V
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Weight & dimensions
Height86 mm
Width150 mm
Depth150 mm
Performance
Power supply unit (PSU) form factorATX
PurposePC
Mean time between failures (MTBF)100000 h
80 PLUS certification80 PLUS Gold
ATX version3.1
Ports & interfaces
PCI Express power connectors (6+2 pin)3
Peripheral (Molex) power connectors (4-pin)4
Motherboard power cable length60 cm
Number of SATA power connectors4
EPS power connector (4+4 pin)Yes
CPU power connector (4+4 pin)Yes
Motherboard power connector24-pin ATX
PCI Express power connectors (12+4 pin)1
