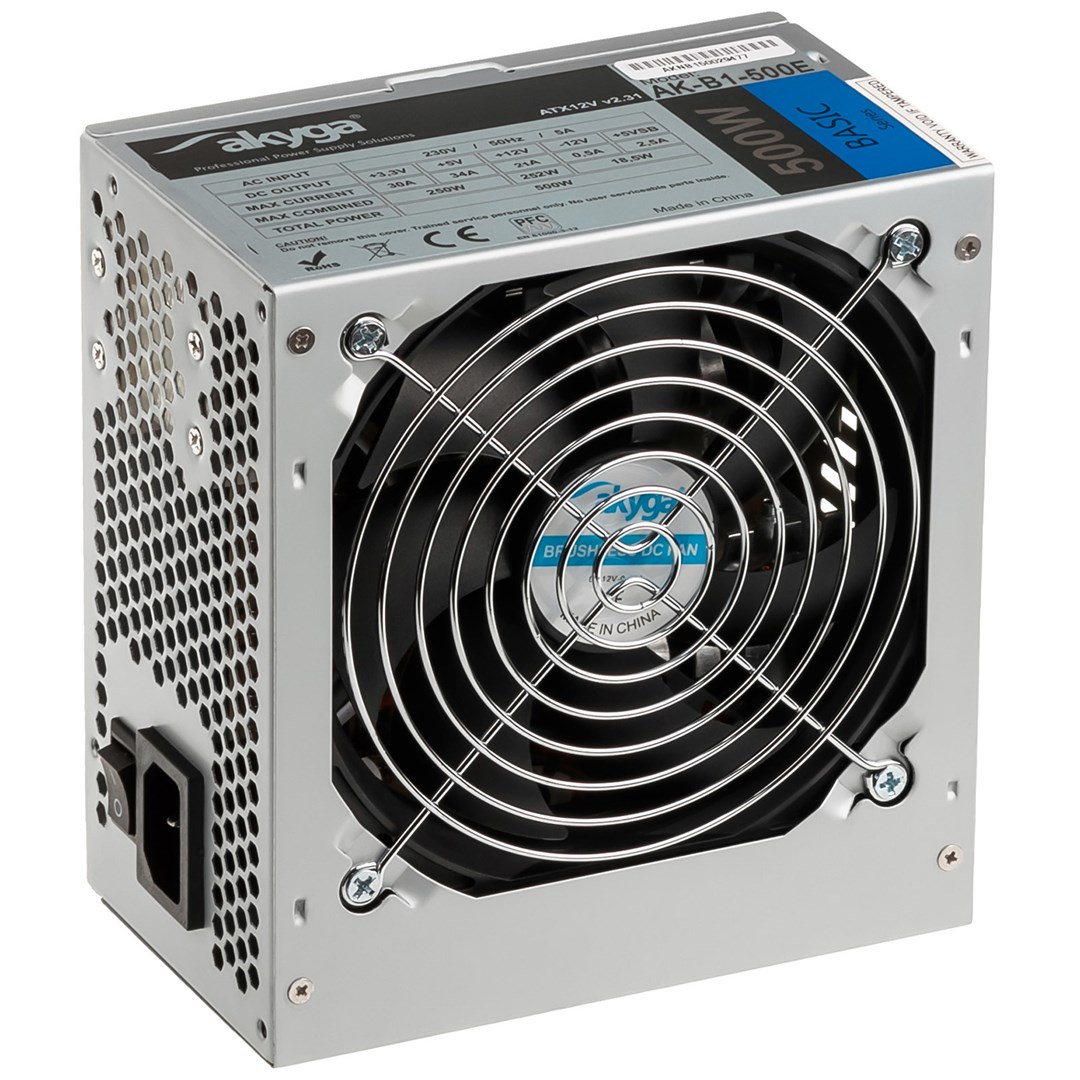

Akyga AK-B1-500E power supply unit 500 W 20+4 pin ATX ATX Grey

Tuotetiedot
SKUZASAKGOBU0013
Technical details
Sustainability certificatesRoHS
Design
Fan diameter12 cm
On/off switchYes
Product colourGrey
Number of fans1 fan(s)
Power
Combined power (+5V)250 W
Input current5 A
Max output current (+3.3V)30 A
Total power500 W
Combined power (+12V)252 W
Max output current (+5V)34 A
AC input voltage220 V
Combined power (+3.3V)250 W
Power Factor Correction (PFC) typePassive
Max output current (+12V)21 A
Operational conditions
Operating temperature (T-T)5 - 50 °C
Weight & dimensions
Weight1.01 kg
Depth140 mm
Width150 mm
Height85 mm
Performance
Mean time between failures (MTBF)100000 h
Supported motherboard form factorsATX
Power supply unit (PSU) form factorATX
PurposePC
ATX version2.31
Packaging data
Package depth220 mm
Package width160 mm
ManualYes
Package height95 mm
Package weight1.09 kg
Package typeBox
Packaging content
Cables includedPeripheral (Molex) to SATA 3.3, SATA
Ports & interfaces
Number of SATA power connectors3
Peripheral (Molex) power connectors (4-pin)2
Motherboard power connector20+4 pin ATX
SATA power cable length300 mm
Peripheral (Molex) power cable length300 mm
EPS power connector (8-pin)No
ATX power connector (12+4 pin)Yes
Other features
Warranty cardYes
Voltage tolerance70%
Fan controllerYes
Number of cables4
Safety warning
WarningsDo not open the case - risk of electric shock.
