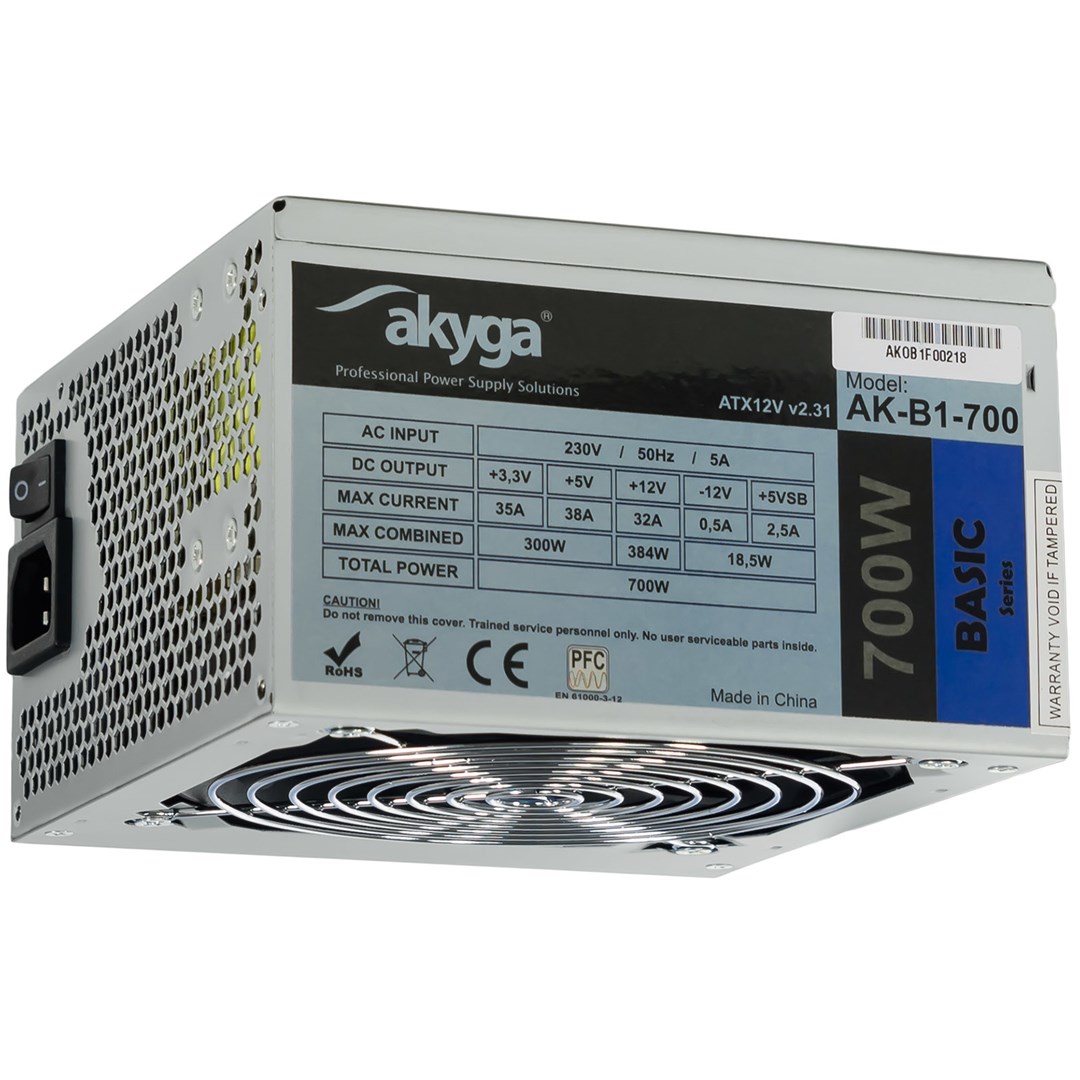

Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey

Tuotetiedot
SKUZASAKGOBU0009
Technical details
Compliance certificatesRoHS
Design
Product colourGrey
On/off switchYes
Fan locationSide
Cooling typeActive
Number of fans1 fan(s)
Fan diameter12 cm
Power
AC input frequency50 Hz
Efficiency70%
Max output current (+5Vsb)2.5 A
Combined power (+5Vsb)18.5 W
Combined power (-12V)18.5 W
Power Factor Correction (PFC) typePassive
Total power700 W
AC input voltage220 - 230 V
Max output current (+5V)38 A
Max output current (+3.3V)35 A
Power protection featuresShort circuit
Combined power (+5V)300 W
Max output current (+12V)32 A
Combined power (+3.3V)300 W
Combined power (+12V)384 W
Max output current (-12V)0.5 A
Operational conditions
Operating temperature (T-T)5 - 50 °C
Weight & dimensions
Depth160 mm
Width150 mm
Height85 mm
Weight1.26 kg
Performance
Power supply unit (PSU) form factorATX
Mean time between failures (MTBF)100000 h
ATX version2.31
PurposePC
Packaging data
Package depth260 mm
Package width180 mm
Package weight1.33 kg
Package height95 mm
Package typeBox
Ports & interfaces
EPS power connector (4+4 pin)Yes
PCI Express power connectors (6+2 pin)2
Number of SATA power connectors5
Cabling typeNon-Modular
Motherboard power connector20+4 pin ATX
SATA power cable length300 mm
Peripheral (Molex) power connectors (4-pin)2
Peripheral (Molex) power cable length150 mm
Motherboard power cable length45 cm
PCI Express power cable length45 cm
Other features
EPS cable length60 cm
