Tuote

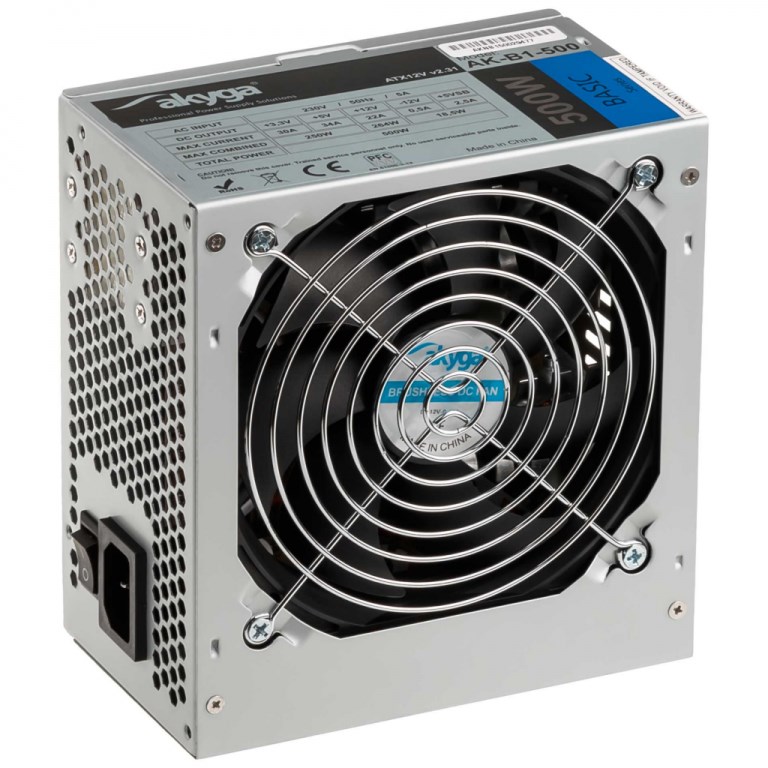

Akyga AK-B1-500 power supply unit 500 W 20+4 pin ATX ATX Grey

Tuotetiedot
SKUZASAKGOBU0005
Technical details
Sustainability certificatesRoHS
Design
Cooling typeActive
Product colourGrey
On/off switchYes
Fan locationTop
Fan diameter12 cm
Number of fans1 fan(s)
Power
Power protection featuresShort circuit
Efficiency70%
Max output current (+5Vsb)2.5 A
Peak power500 W
AC input voltage230 V
Max output current (+5V)34 A
Combined power (+5Vsb)18.5 W
Input current5 A
Combined power (+5V)250 W
Combined power (+3.3V)250 W
Max output current (+12V)22 A
Combined power (-12V)18.5 W
Max output current (+3.3V)30 A
Max output current (-12V)0.5 A
Total power500 W
Combined power (+12V)264 W
Operational conditions
Operating temperature (T-T)5 - 50 °C
Weight & dimensions
Depth140 mm
Width150 mm
Height85 mm
Weight1.03 kg
Performance
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
ATX version2.31
PurposePC
Packaging data
Package height95 mm
Package typeBox
Package depth220 mm
Package width160 mm
Package weight1.1 kg
ManualYes
Ports & interfaces
PCI Express power connectors (6+2 pin)1
Peripheral (Molex) power cable length300 mm
Peripheral (Molex) power connectors (4-pin)2
Number of SATA power connectors3
ATX power connector (20+4 pin)Yes
CPU power cable length45 cm
CPU P4 connector (4-pin)1
SATA power cable length300 mm
Motherboard power connector20+4 pin ATX
Cabling typeNon-Modular
Other features
Warranty cardYes
