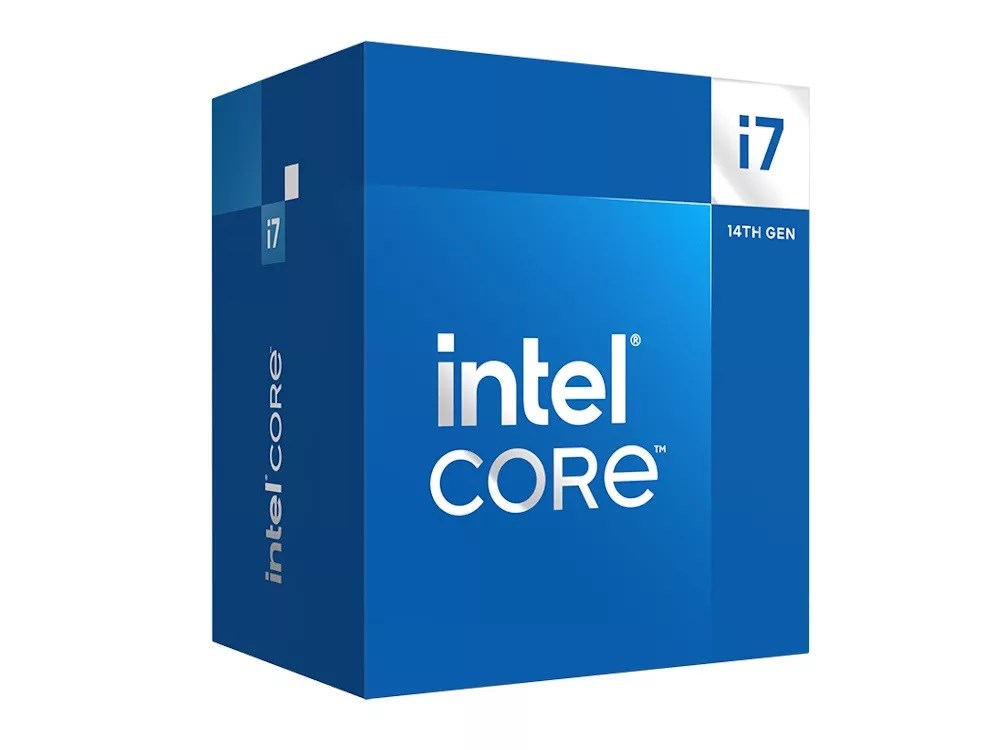

Intel Core i7-14700 processor 33 MB Smart Cache Box

Tuotetiedot
SKUPROINTCI70208
Technical details
Launch dateQ1'24
OpenCL version3.0
StatusLaunched
Processor
Processor cache33 MB
Processor socketLGA 1700
Maximum number of DMI lanes8
Cooler includedYes
Processor threads28
Processor base power65 W
Processor codenameRaptor Lake
Processor familyIntel® Core™ i7
BoxYes
Processor cores20
Memory bandwidth supported by processor (max)89.6 GB/s
Performance-core boost frequency5.3 GHz
Processor modeli7-14700
Processor generationIntel® Core™ i7 (14th gen)
Efficient cores12
SteppingB0
Maximum turbo power219 W
Processor manufacturerIntel
Processor cache typeSmart Cache
Processor ARK ID236781
Performance-core base frequency2.1 GHz
Processor operating modes64-bit
Performance cores8
Graphics
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)5120 x 3200 pixels
Number of displays supported (on-board graphics)4
On-board graphics card dynamic frequency (max)1600 MHz
On-board graphics card base frequency300 MHz
Number of execution units32
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)120 Hz
On-board graphics card ID0xA780
Discrete graphics cardNo
On-board graphics card refresh rate at maximum resolution (DisplayPort)60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)60 Hz
On-board graphics card modelIntel UHD Graphics 770
On-board graphics cardYes
On-board graphics card outputs supportedDisplayPort 1.4a
On-board graphics card maximum resolution (DisplayPort)7680 x 4320 pixels
On-board graphics card maximum resolution (HDMI)4096 x 2160 pixels
Multi-Format Codec Engines2
Discrete graphics card modelNot available
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.5
Features
Idle StatesYes
Embedded options availableYes
CPU configuration (max)1
Supported instruction setsSSE4.1
PCI Express configurations1x16+1x4
Scalability1S
Execute Disable BitYes
PCI Express slots version4.0
Maximum number of PCI Express lanes20
Export Control Classification Number (ECCN)5A992C
Market segmentDesktop
Direct Media Interface (DMI) Revision4.0
Thermal Monitoring TechnologiesYes
Commodity Classification Automated Tracking System (CCATS)740.17B1
Use conditionsPC/Client/Tablet
Memory
Maximum internal memory supported by processor192 GB
Memory types supported by processorDDR4-SDRAM
Memory bandwidth (max)89.6 GB/s
ECCYes
Memory channelsDual-channel
Operational conditions
Tjunction100 °C
Weight & dimensions
Processor package size45 x 37.5 mm
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Virtualization Technology (VT-x)Yes
Intel® Quick Sync Video TechnologyYes
Enhanced Intel SpeedStep TechnologyYes
Intel® Thread DirectorYes
Intel® Control-flow Enforcement Technology (CET)Yes
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Max Technology 3.0 frequency5.4 GHz
Intel® Turbo Boost Technology2.0
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Speed Shift TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® Boot GuardYes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0Yes
Intel Turbo Boost Max Technology 3.0Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPUYes
Intel® Standard Manageability (ISM)Yes
Mode-based Execute Control (MBE)Yes
Intel 64Yes
Intel® Volume Management Device (VMD)Yes
Other features
L2 cache28672 KB
Maximum internal memory192 GB
Graphics outputeDP 1.4b, DP 1.4a, HDMI 2.1
Logistics data
Harmonized System (HS) code8542310001
Safety warning
WarningsDo not touch the processor pins to avoid electrostatic damage.
