Tuote

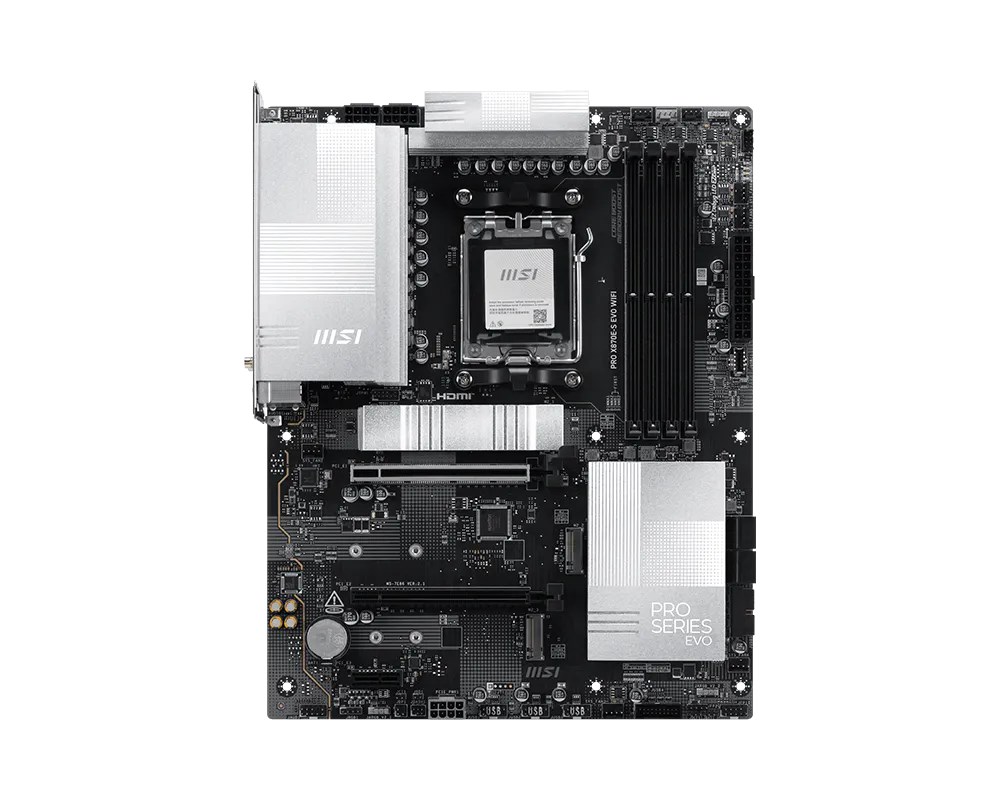

MSI PRO X870E-S EVO WIFI motherboard AMD X870E Socket AM5 ATX

Tuotetiedot
SKUPLYMISAM50058
Processor
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series
Supported processor socketsSocket AM5
Features
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11 x64
Audio output channels7.1 channels
Motherboard chipsetAMD X870E
Motherboard form factorATX
Audio chipRealtek ALC897
Memory
ECC сompatibilityNon-ECC
Supported memory clock speed (max)8200 MHz
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Number of memory slots4
Supported memory clock speeds6400
Maximum internal memory256 GB
Weight & dimensions
Width304.8 mm
Depth243.8 mm
Network
Bluetooth version5.4
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet interface type5 Gigabit Ethernet
Ethernet LANYes
Wi-Fi standardsWi-Fi 7 (802.11be)
BluetoothYes
Internal I/O
Total number of SATA connectors4
RGB LED pin headerYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
EPS power connector (8-pin)Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
CPU fan connectorYes
ATX Power connector (24-pin)Yes
TPM connectorYes
USB 2.0 connectors6
Storage controllers
RAID levels10
Number of storage drives supported7
Number of HDDs supported4
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Rear panel I/O ports
USB4 Gen 2x2 ports quantity1
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB4 Gen 3x2 ports quantity1
Expansion slots
3rd M.2 largest key size2280
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 highest PCI Express generation4.0
PCI Express x16 (Gen 5.x) slots1
PCI Express x1 slots1
Number of M.2 (M) slots3
PCI Express x16 slots2
Huuda tuotetta / Osta tuote (Huutamalla tuotetta voit säästää jopa 64€ eli voit saada tuotteesi 20.7% alennuksella.)
