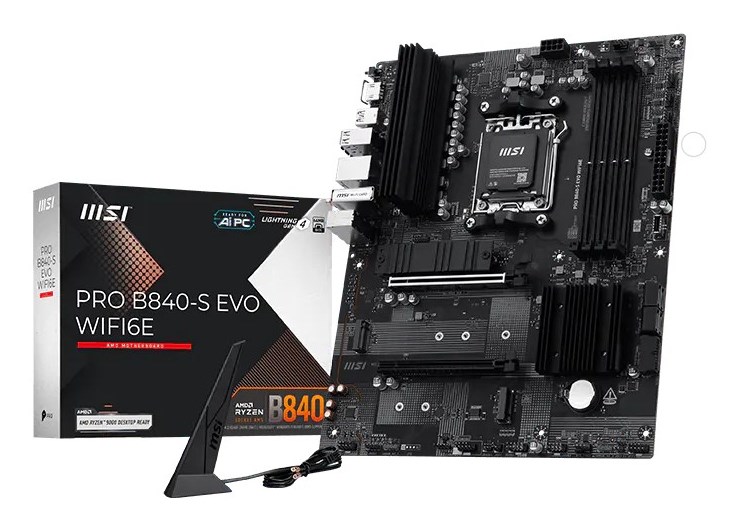

MSI Pro B840-S EVO WIFI6E AMD B840 Socket AM5 ATX

Tuotetiedot
SKUPLYMISAM50056
Processor
Compatible processor seriesAMD Ryzen 8000 Series
Supported processor socketsSocket AM5
Processor manufacturerAMD
Processor socketSocket AM5
Features
Motherboard chipsetAMD B840
Audio output channels7.1 channels
Product colourBlack
Audio chipRealtek ALC897
Motherboard form factorATX
Windows operating systems supportedWindows 11 x64
Motherboard chipset familyAMD
Memory
Supported memory clock speed (max)8000 MHz
Maximum internal memory256 GB
Supported memory clock speeds5600
ECC сompatibilityNon-ECC
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Number of memory slots4
Memory slots typeDIMM
Weight & dimensions
Depth304.8 mm
Width243.8 mm
Network
BluetoothYes
Bluetooth version5.3
Wi-Fi standards802.11b
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-FiYes
Internal I/O
RGB LED pin headerYes
Number of CPU fan connectors1
Number of RGB LED pin headers4
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
Number of SATA III connectors4
USB 2.0 connectors4
Total number of SATA connectors4
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, Micro SATA III
RAID levels10
Number of storage drives supported7
RAID supportYes
Number of HDDs supported4
Rear panel I/O ports
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
Expansion slots
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation3.0
1st M.2 largest key size2280
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots3
