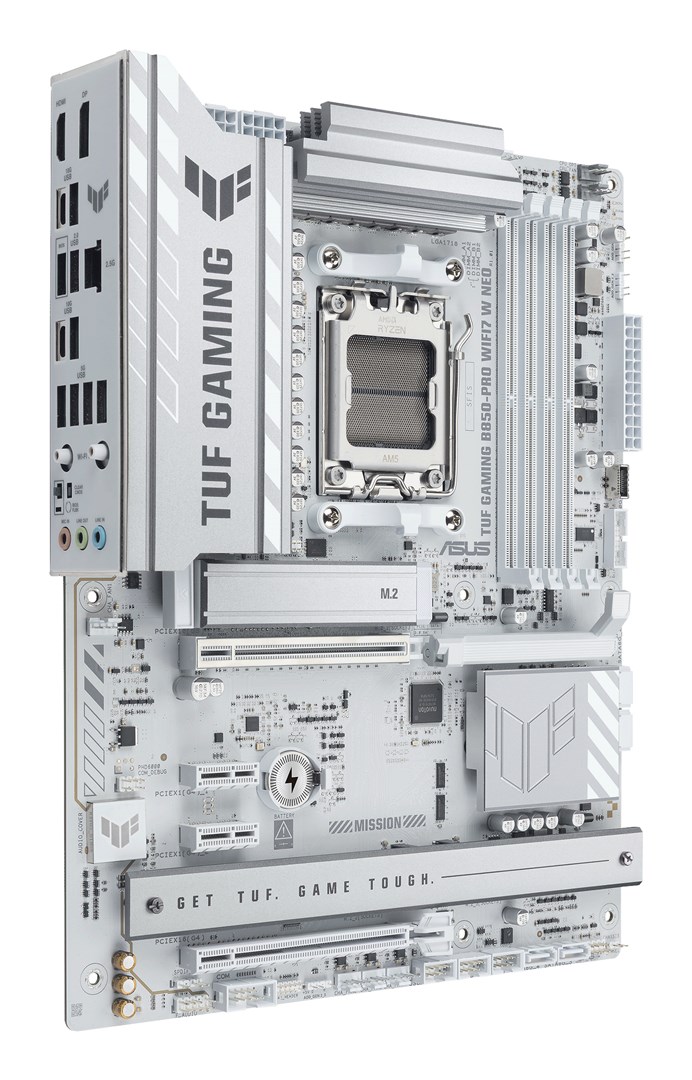

ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD B850 Socket AM5 ATX

Tuotetiedot
SKUPLYASUAM50074
Processor
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series
Processor manufacturerAMD
Graphics
On-board graphics cardNo
Parallel processing technology supportNot supported
Features
Audio output channels7.1 channels
Windows operating systems supportedWindows 11
Motherboard form factorATX
Motherboard chipsetAMD B850
Motherboard chipset familyAMD
Product colourWhite
Audio chipRealtek ALC1220P
Memory
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Number of memory slots4
Supported memory clock speed (max)9000 MHz
ECC сompatibilityECC & Non-ECC
Maximum internal memory256 GB
Weight & dimensions
Depth244 mm
Height50 mm
Width305 mm
Network
Bluetooth version5.4
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
Ethernet LANYes
WLAN controller modelRealtek RTL8922AE
BluetoothYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Internal I/O
12V power connectorYes
USB 3.2 Gen 2x2 connectors1
Number of water pump connectors1
Number of CPU fan connectors1
Chassis intrusion connectorYes
Thunderbolt headers1
Front panel audio connectorYes
EPS power connector (8-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
ATX Power connector (24-pin)Yes
S/PDIF out connectorYes
CPU fan connectorYes
USB 2.0 connectors3
Number of COM connectors1
Number of chassis fan connectors4
Number of SATA III connectors4
BIOS
BIOS typeUEFI AMI
Clear CMOS buttonYes
Packaging data
Package weight1.94 kg
Package width353 mm
Package depth273 mm
Package height68 mm
Storage controllers
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Rear panel I/O ports
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
DisplayPorts quantity1
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Expansion slots
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
1st M.2 largest key size2280
Number of M.2 (M) slots3
Other features
Weight1.35 kg
