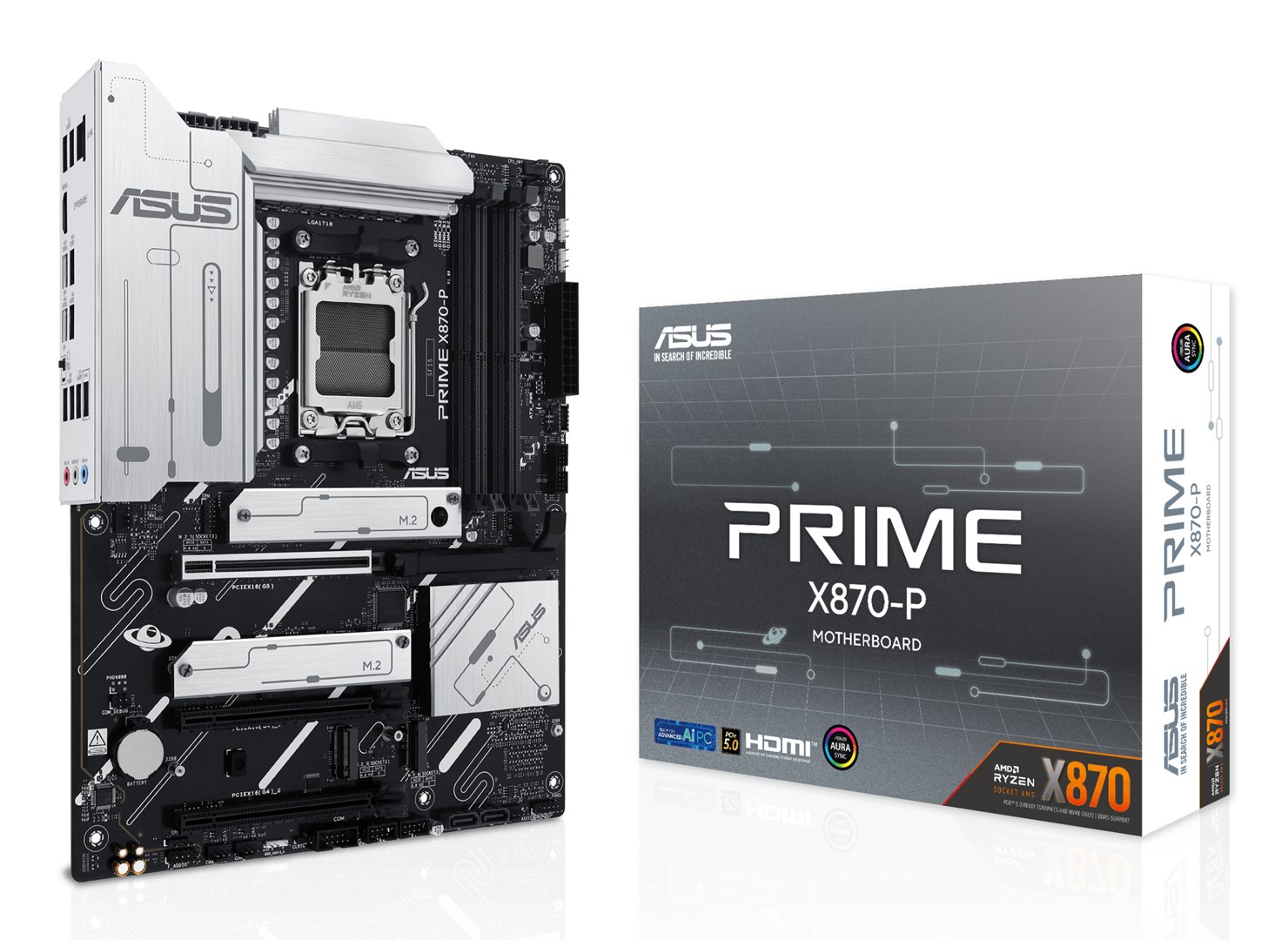

ASUS PRIME X870-P AMD X870 Socket AM5 ATX

Tuotetiedot
SKUPLYASUAM50043
Processor
Supported processor socketsSocket AM5
Processor socketSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 7000 Series
Graphics
Parallel processing technology supportNot supported
On-board graphics cardNo
Features
Motherboard chipset familyAMD
Motherboard form factorATX
Power source typeATX
Product colourBlack
Motherboard chipsetAMD X870
Audio output channels7.1 channels
Cooling typePassive
Windows operating systems supportedWindows 11
Memory
Maximum internal memory192 GB
Unbuffered memoryYes
Supported memory clock speed (max)8000 MHz
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Number of memory slots4
Weight & dimensions
Depth244 mm
Width305 mm
Height48 mm
Network
Wi-FiNo
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Top Wi-Fi standardNot available
Internal I/O
Number of SATA III connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
Front panel audio connectorYes
Number of chassis fan connectors4
CPU fan connectorYes
Number of COM connectors1
TPM connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
EPS power connector (8-pin)Yes
12V power connectorYes
RGB LED pin headerYes
BIOS
BIOS typeUEFI AMI
Packaging data
Package weight1.5 kg
Package width353 mm
Package height68 mm
Package depth273 mm
Packaging content
Cables includedSATA
Storage controllers
RAID levels10
RAID supportYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported6
Number of HDDs supported2
Rear panel I/O ports
Ethernet LAN (RJ-45) ports1
DisplayPort version1.4a
USB 2.0 ports quantity4
USB4 Gen 2x2 ports quantity2
Microphone inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
Line-inYes
Expansion slots
Number of M.2 (M) slots4
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 4.x) slots2
Other features
Weight1.44 kg
Back-to-BIOS buttonYes
Safety warning
WarningsDispose of in accordance with local regulations for electronic waste.
