Tuote

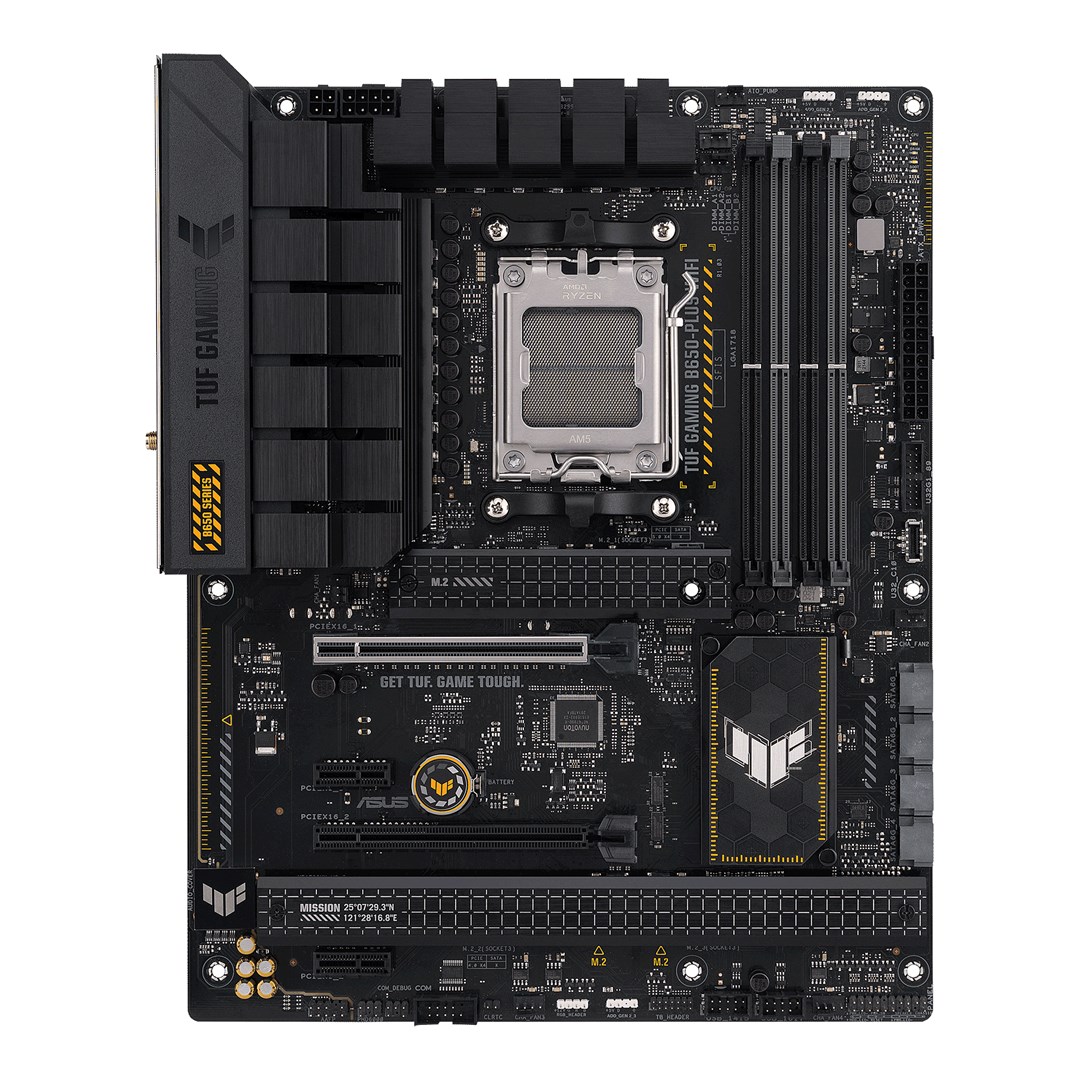

ASUS TUF GAMING B650-PLUS WIFI Motherboard

Tuotetiedot
SKUPLYASUAM50018
Processor
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 7000 Series
Processor socketSocket AM5
Supported processor socketsSocket AM5
Graphics
On-board graphics cardNo
Parallel processing technology supportNot supported
Features
Product colourBlack
Motherboard chipsetAMD B650
Motherboard chipset familyAMD
Audio output channels7.1 channels
Motherboard form factorATX
Memory
Supported memory clock speeds6800 MHz
Unbuffered memoryYes
Maximum internal memory128 GB
ECC сompatibilityECC & Non-ECC
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Weight & dimensions
Height50 mm
Depth244 mm
Width305 mm
Network
BluetoothYes
Bluetooth version5.2
Ethernet interface type2.5 Gigabit Ethernet
Wi-Fi standards802.11a
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Ethernet LANYes
Wi-FiYes
Internal I/O
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Thunderbolt headers1
USB 2.0 connectors2
RGB LED pin headerYes
Number of COM connectors1
Front panel audio connectorYes
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
BIOS
BIOS typeUEFI AMI
Packaging data
Package weight1.36 kg
Package width338 mm
Package depth273 mm
Package height68 mm
Storage controllers
Supported storage drive typesHDD & SSD
RAID supportYes
Supported storage drive interfacesM.2, SATA III
RAID levels0
Number of storage drives supported7
Rear panel I/O ports
DisplayPorts quantity1
S/PDIF out portNo
USB 3.2 Gen 2x2 Type-C ports quantity1
Line-inYes
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Microphone inYes
HDMI ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Expansion slots
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots2
Number of M.2 (M) slots3
Other features
Weight1.2 kg
Safety warning
WarningsDispose of in accordance with local regulations for electronic waste.
