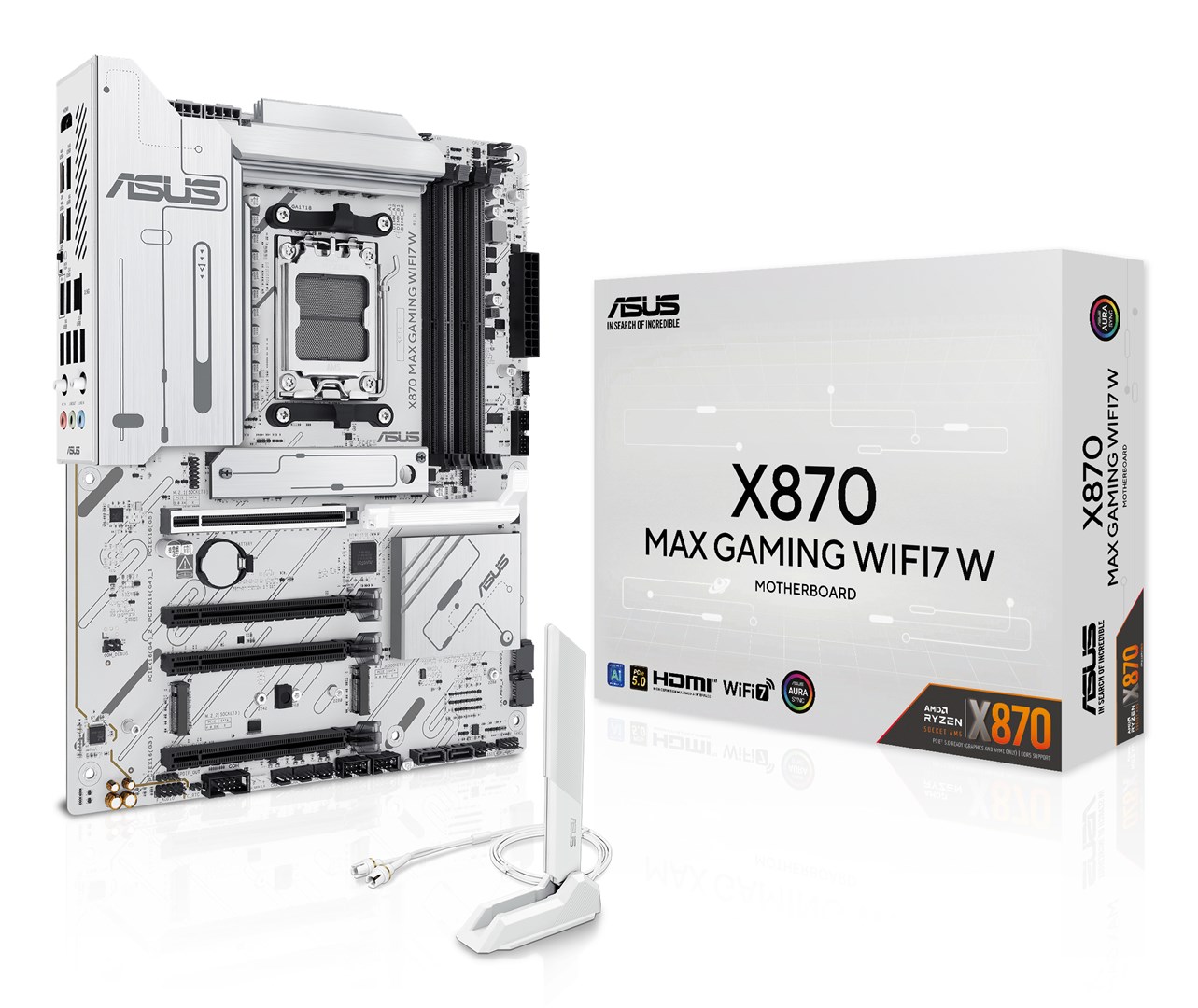

ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX

Tuotetiedot
SKUPLYASUAM40086
Processor
Supported processor socketsSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
Processor socketSocket AM5
Graphics
Maximum resolution3840 x 2160 pixels
Parallel processing technology supportNot supported
Features
Product colourWhite
Motherboard chipset familyAMD
Audio output channels7.1 channels
Motherboard chipsetAMD X870
Motherboard form factorATX
Windows operating systems supportedWindows 11
Memory
Unbuffered memoryYes
Maximum internal memory256 GB
ECC сompatibilityECC & Non-ECC
Supported memory clock speed (max)8000 MHz
Memory channelsDual-channel
Number of memory slots4
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Weight & dimensions
Depth244 mm
Width305 mm
Network
BluetoothYes
Wake-on-LAN readyYes
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Bluetooth version5.4
Internal I/O
Number of SATA III connectors4
Number of CPU fan connectors2
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)2
S/PDIF out connectorYes
USB 2.0 connectors2
Chassis intrusion connectorYes
Number of chassis fan connectors4
Number of RGB LED pin headers3
Number of water pump connectors1
ATX Power connector (24-pin)Yes
USB 3.2 Gen 2x2 connectors1
TPM connectorYes
Number of COM connectors1
12V power connectorYes
RGB LED pin headerYes
BIOS
BIOS typeUEFI AMI
Clear CMOS jumperYes
Packaging content
Antenna includedYes
Screws includedYes
Cables includedSATA
Storage controllers
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
RAID supportYes
RAID levels0
Supported storage drive typesHDD & SSD
Number of storage drives supported7
Rear panel I/O ports
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
USB connector typeUSB Type-C
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
WiFi-AP antenna jack2
Microphone inYes
USB4 Gen 3x2 ports quantity2
Headphone outputs3
Expansion slots
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots3
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
