Tuote

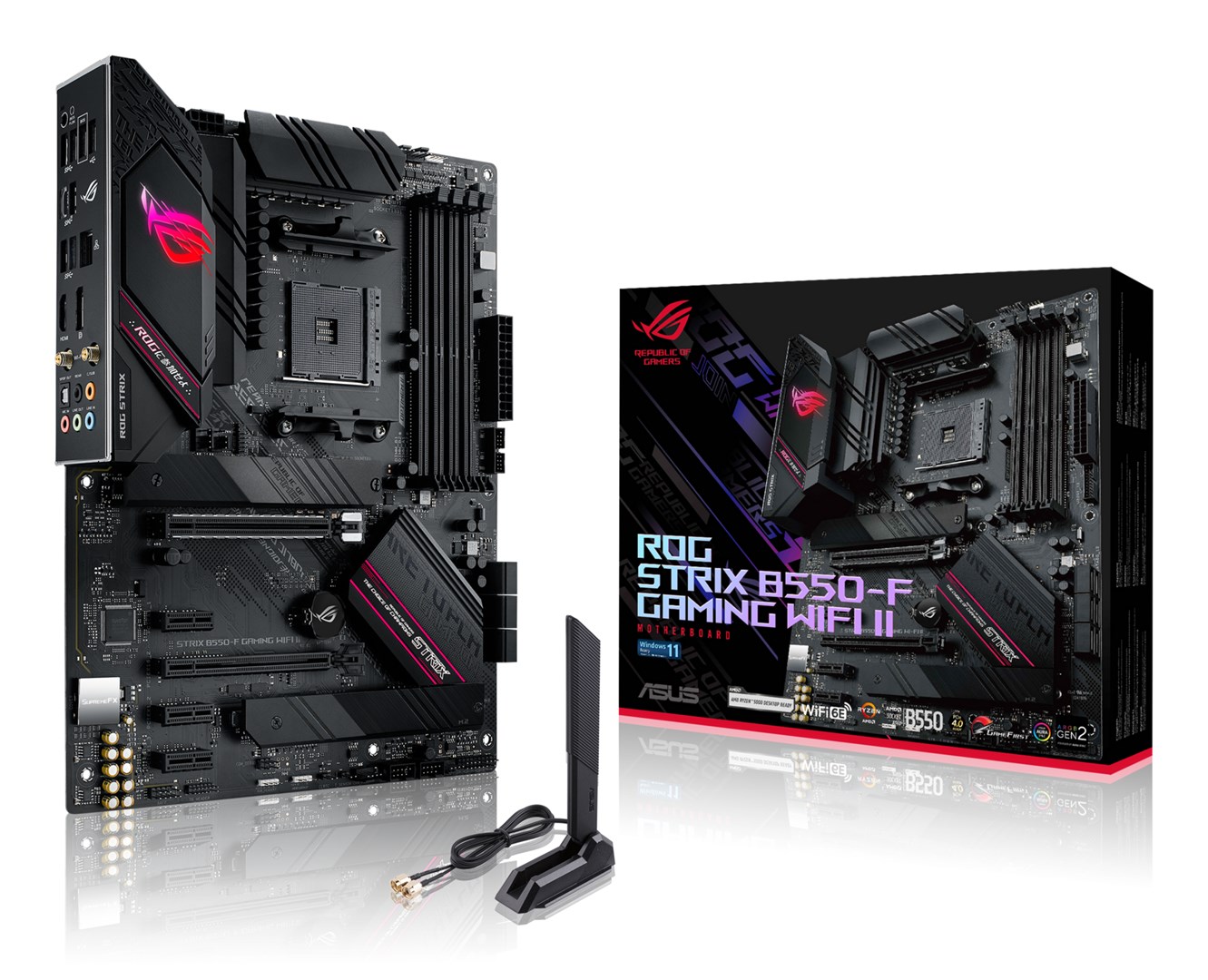

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX

Tuotetiedot
SKUPLYASUAM40075
Processor
Supported processor socketsSocket AM4
Processor manufacturerAMD
Maximum number of SMP processors1
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series
Graphics
Parallel processing technology supportNot supported
On-board graphics cardNo
Features
Windows operating systems supportedWindows 10 Enterprise
Audio output channels7.1 channels
Cooling typeActive
Motherboard chipsetAMD B550
Motherboard chipset familyAMD
Power source typeATX
Motherboard form factorATX
Product colourBlack
Memory
ECC сompatibilityECC
Memory slots typeDIMM
Maximum internal memory128 GB
Number of memory slots4
Supported memory typesDDR4-SDRAM
Supported memory clock speeds2400
Weight & dimensions
Height68 mm
Width305 mm
Depth244 mm
Network
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Ethernet interface type2.5 Gigabit Ethernet
Wi-Fi standards802.11a
Ethernet LANYes
Wi-FiYes
Bluetooth version5.2
BluetoothYes
LAN controllerIntel I225-V
Wake-on-LAN readyYes
Internal I/O
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
Thunderbolt headers1
RGB LED pin headerYes
CPU fan connectorYes
12V power connectorYes
Number of SATA III connectors6
Number of EATX power connectors1
USB 2.0 connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of chassis fan connectors3
BIOS
BIOS typeUEFI AMI
Packaging content
Cables includedSATA
Drivers includedYes
Storage controllers
Number of storage drives supported8
RAID levels10
Number of HDDs supported6
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Rear panel I/O ports
DisplayPorts quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Microphone inYes
Headphone outputs1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
DisplayPort version1.2
Ethernet LAN (RJ-45) ports1
HDMI version2.1
S/PDIF out portYes
HDMI ports quantity1
USB 2.0 ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Expansion slots
Number of M.2 (M) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots1
Other features
Weight945 g
Logistics data
Harmonized System (HS) code84733020
Safety warning
WarningsDispose of according to local electro-waste regulations.
