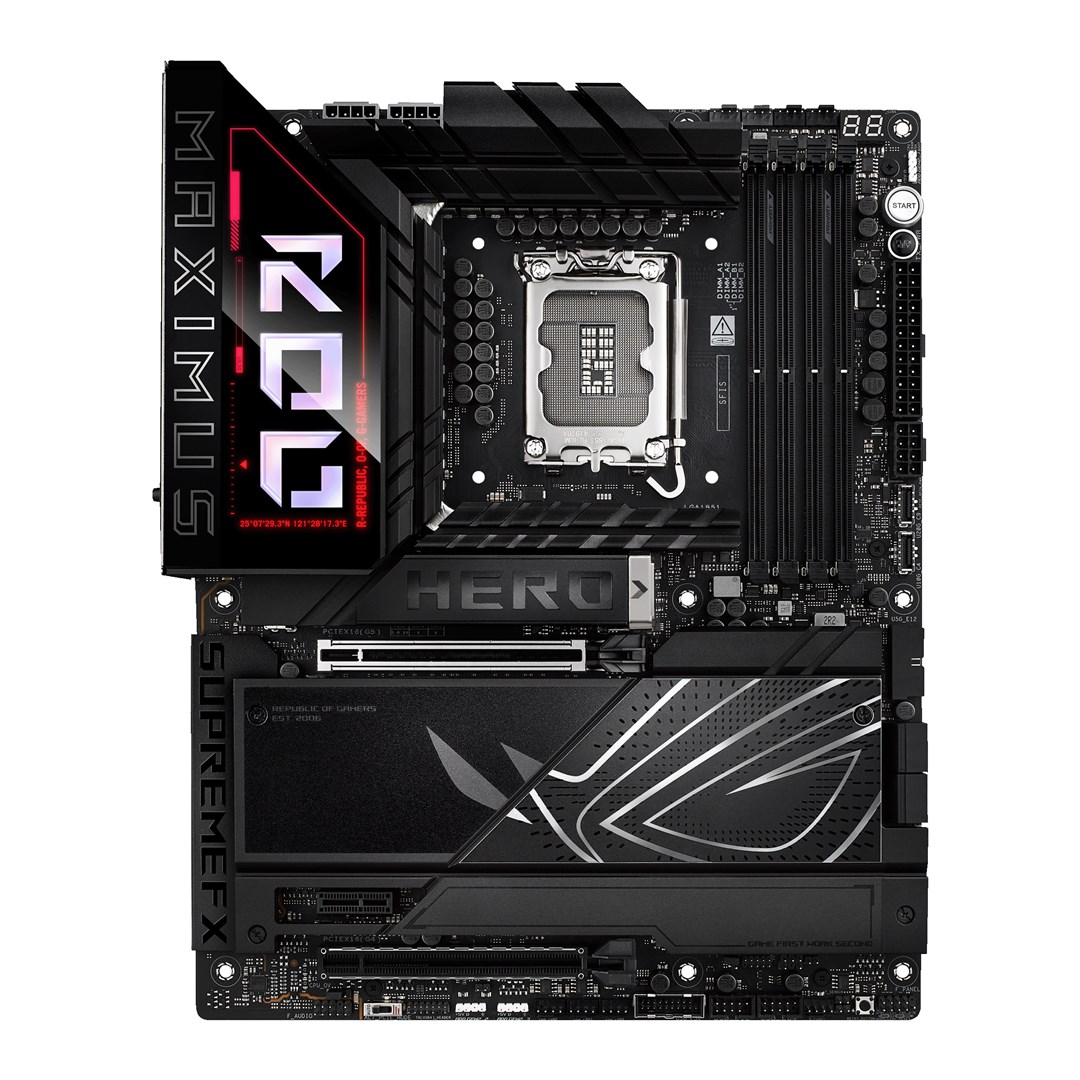

ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX

Tuotetiedot
SKUPLYASU1850003
Processor
Processor manufacturerIntel
Compatible processor seriesIntel Core Ultra (Series 2)
Processor socketLGA 1851 (Socket V1)
Graphics
On-board graphics cardNo
Parallel processing technology supportNot supported
Features
Motherboard chipsetIntel Z890
Motherboard form factorATX
Audio output channels7.1 channels
Product colourBlack
Windows operating systems supportedWindows 11
Audio chipRealtek ALC4082
Motherboard chipset familyIntel
Memory
Maximum internal memory192 GB
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speed (max)8800 MHz
Unbuffered memoryYes
Weight & dimensions
Width305 mm
Depth244 mm
Network
Bluetooth version5.4
Ethernet interface type2.5 Gigabit Ethernet
BluetoothYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet LANYes
Internal I/O
12V power connectorYes
Number of chassis fan connectors4
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Front panel audio connectorYes
Thunderbolt headers1
EPS power connector (8-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
USB 2.0 connectors2
USB 3.2 Gen 2x2 connectors1
CPU fan connectorYes
BIOS
Clear CMOS buttonYes
BIOS typeUEFI AMI
Packaging data
Package width370 mm
Package height108 mm
Package depth312 mm
Storage controllers
RAID levels1
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Number of storage drives supported10
Number of HDDs supported4
Supported storage drive typesHDD & SSD
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
S/PDIF out portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Microphone inYes
Thunderbolt ports quantity2
USB connector typeUSB Type-C
Expansion slots
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots6
PCI Express x1 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Huuda tuotetta / Osta tuote (Huutamalla tuotetta voit säästää jopa 119€ eli voit saada tuotteesi 21.3% alennuksella.)
