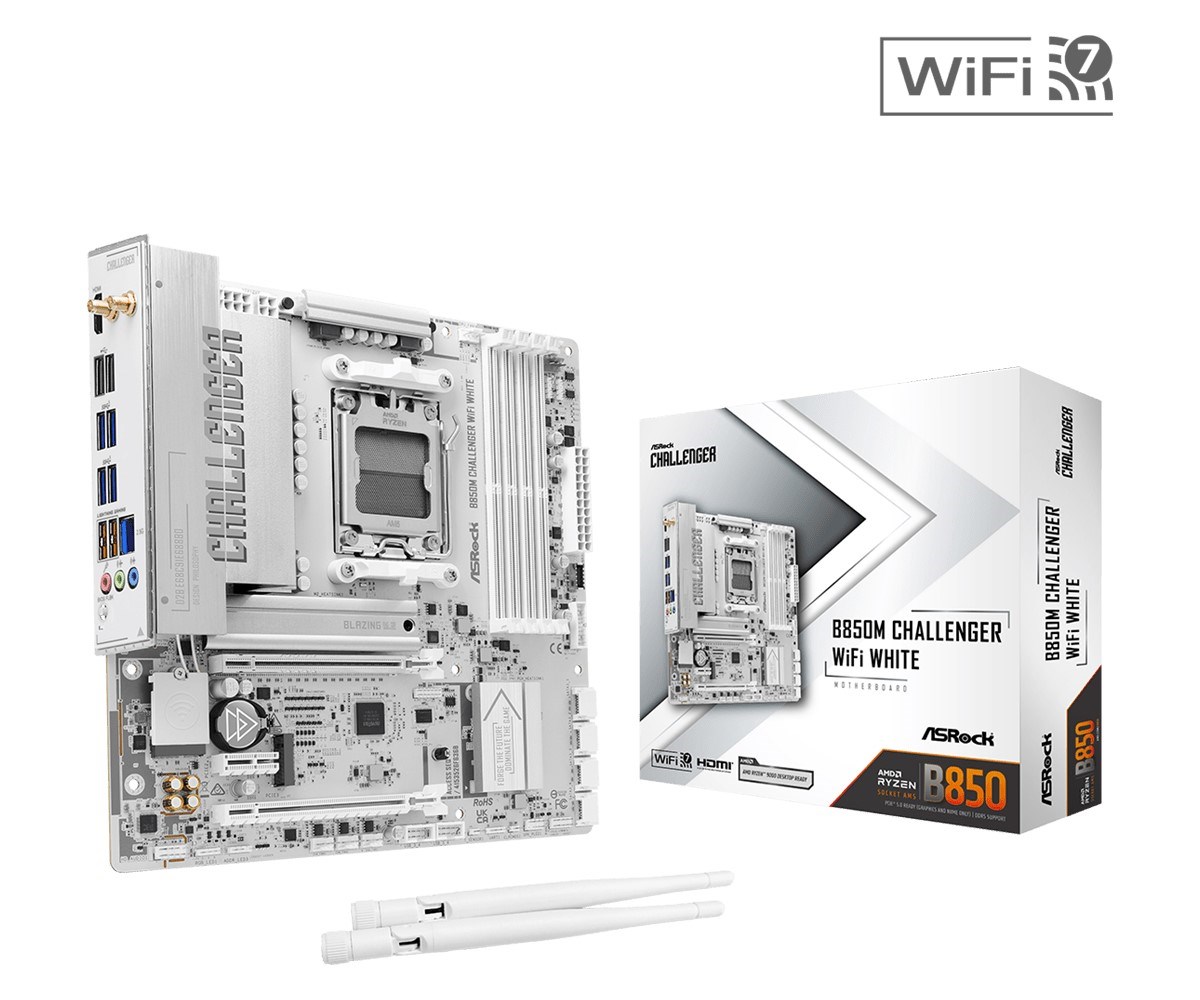

Asrock B850M CHALLENGER WIFI WHITE motherboard

Tuotetiedot
SKUPLYASRAM50079
Processor
Processor socketSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
Features
Motherboard chipsetAMD B850
Audio chipRealtek ALC897
Motherboard chipset familyAMD
Motherboard form factormicro ATX
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Memory
Memory channelsDual-channel
Maximum internal memory256 GB
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
ECC сompatibilityECC & Non-ECC
Weight & dimensions
Depth244 mm
Width244 mm
Network
LAN controllerDragon RTL8125BG
BluetoothYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet LANYes
MIMO typeMulti User MIMO
Bluetooth version5.4
Wi-FiYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-Fi standardsWi-Fi 5 (802.11ac)
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Peripheral (Molex) power connectors (4-pin)1
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Number of SATA III connectors4
CPU fan connectorYes
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
Number of chassis fan connectors3
RGB LED pin headerYes
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
BIOS
BIOS typeUEFI AMI
Packaging content
Cables includedSATA
Antenna includedYes
Storage controllers
RAID levels10
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Rear panel I/O ports
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Line-inYes
Headphone outputs1
Microphone inYes
Antennas quantity2
Expansion slots
Number of M.2 (M) slots1
PCI Express x1 (Gen 4.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
