Tuote

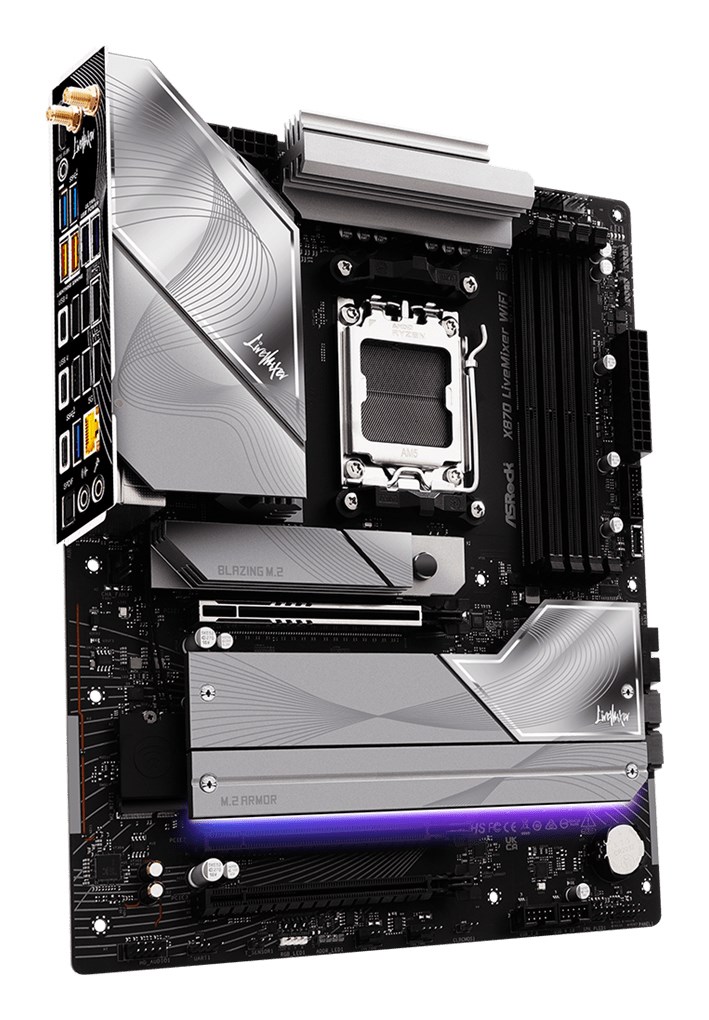

Asrock X870 LiveMixer WiFi AMD X870 Socket AM5 ATX

Tuotetiedot
SKUPLYASRAM50068
Technical details
Compliance certificatesCE
Processor
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
Processor socketSocket AM5
Supported processor socketsSocket AM5
Graphics
High Dynamic Range (HDR) supportedYes
HDCP version2.3
Maximum resolution7680 x 4320 pixels
Parallel processing technology supportNot supported
HDCPYes
Features
Audio output channels7.1 channels
Motherboard form factorATX
Motherboard chipsetAMD X870
Windows operating systems supportedWindows 11 x64
Product colourBlack
Motherboard chipset familyAMD
Audio chipRealtek ALC4082
Memory
Memory channelsDual-channel
Memory slots typeDIMM
ECC сompatibilityECC & Non-ECC
Number of memory slots4
Supported memory typesDDR5-SDRAM
Supported memory clock speed (max)8000 MHz
Maximum internal memory256 GB
Unbuffered memoryYes
Weight & dimensions
Width305 mm
Depth244 mm
Network
Wi-FiYes
Wi-Fi standards802.11g
Top Wi-Fi standardWi-Fi 7 (802.11be)
Bluetooth version5.4
Ethernet interface type5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8126
BluetoothYes
Internal I/O
RGB LED pin headerYes
USB 3.2 Gen 2x2 connectors1
12V power connectorYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of water pump connectors1
Number of chassis fan connectors3
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors2
Number of SATA III connectors2
CPU fan connectorYes
TPM connectorYes
BIOS
BIOS flashback buttonYes
BIOS typeUEFI AMI
Packaging content
Antenna includedYes
Cables includedSATA
Storage controllers
Number of storage drives supported6
RAID supportYes
Supported storage drive typesHDD & SSD
RAID levels1
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Rear panel I/O ports
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Headphone outputs1
Microphone inYes
USB4 Gen 3x2 ports quantity2
HDMI version2.1
WiFi-AP antenna jack2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity7
S/PDIF out portYes
USB 2.0 ports quantity6
USB connector typeUSB Type-A
Ethernet LAN (RJ-45) ports1
Expansion slots
2nd M.2 largest key size2280
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 5.x) slots1
3rd M.2 highest PCI Express generation4.0
4th M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
4th M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots4
