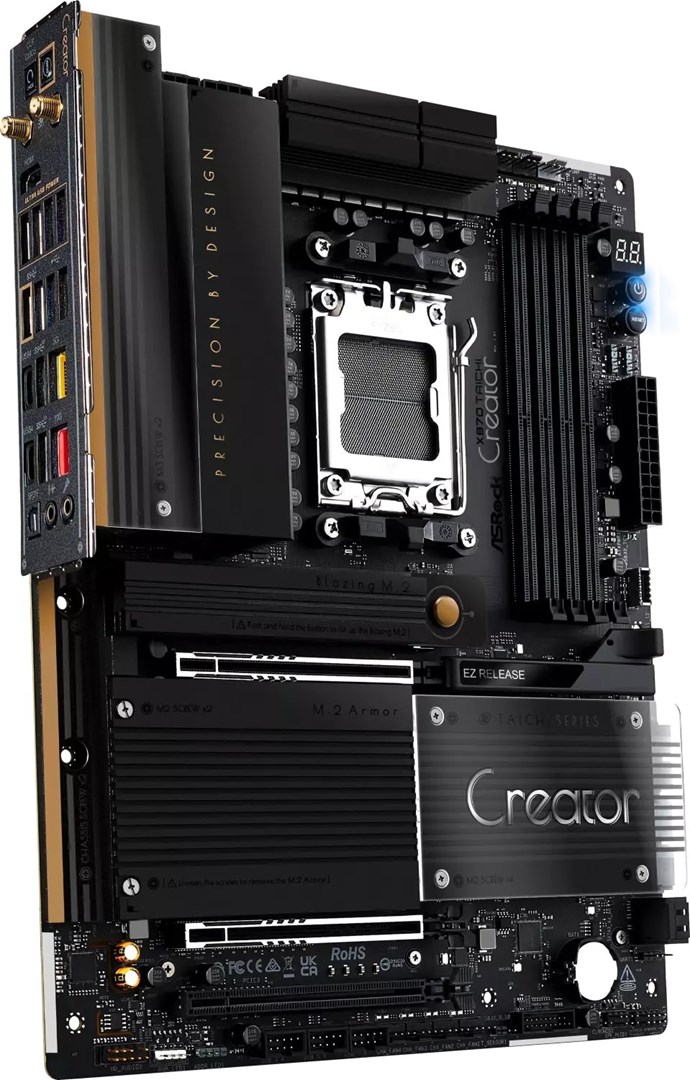

Asrock X870 Taichi Creator AMD X870 Socket AM5 ATX

Tuotetiedot
SKUPLYASRAM50067
Processor
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
Processor socketSocket AM5
Features
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Product colourBlack
Motherboard form factorATX
Motherboard chipset familyAMD
Audio chipRealtek ALC4082
Motherboard chipsetAMD X870
Memory
Supported memory clock speeds8000 MHz
Maximum internal memory256 GB
Memory channelsDual-channel
Unbuffered memoryYes
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
ECC сompatibilityECC & Non-ECC
Weight & dimensions
Width305 mm
Depth244 mm
Network
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
BluetoothYes
Wi-Fi standards802.11b
LAN controllerMarvell AQC113
Ethernet LANYes
Bluetooth version5.4
Ethernet interface type10 Gigabit Ethernet
Internal I/O
Number of chassis fan connectors4
Front panel audio connectorYes
EPS power connector (8-pin)Yes
USB 2.0 connectors3
CPU fan connectorYes
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
LED connectorY
USB 3.2 Gen 2x2 connectors1
Number of EPS power connectors (8-pin)2
BIOS
BIOS typeEFI AMI
Packaging content
Cables includedSATA
Antenna includedYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID levels10
RAID supportYes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Microphone inYes
S/PDIF out portYes
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity2
USB4 Gen 3x2 ports quantity2
Headphone outputs1
Audio connectorYes
Expansion slots
Number of M.2 (M) slots1
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots2
