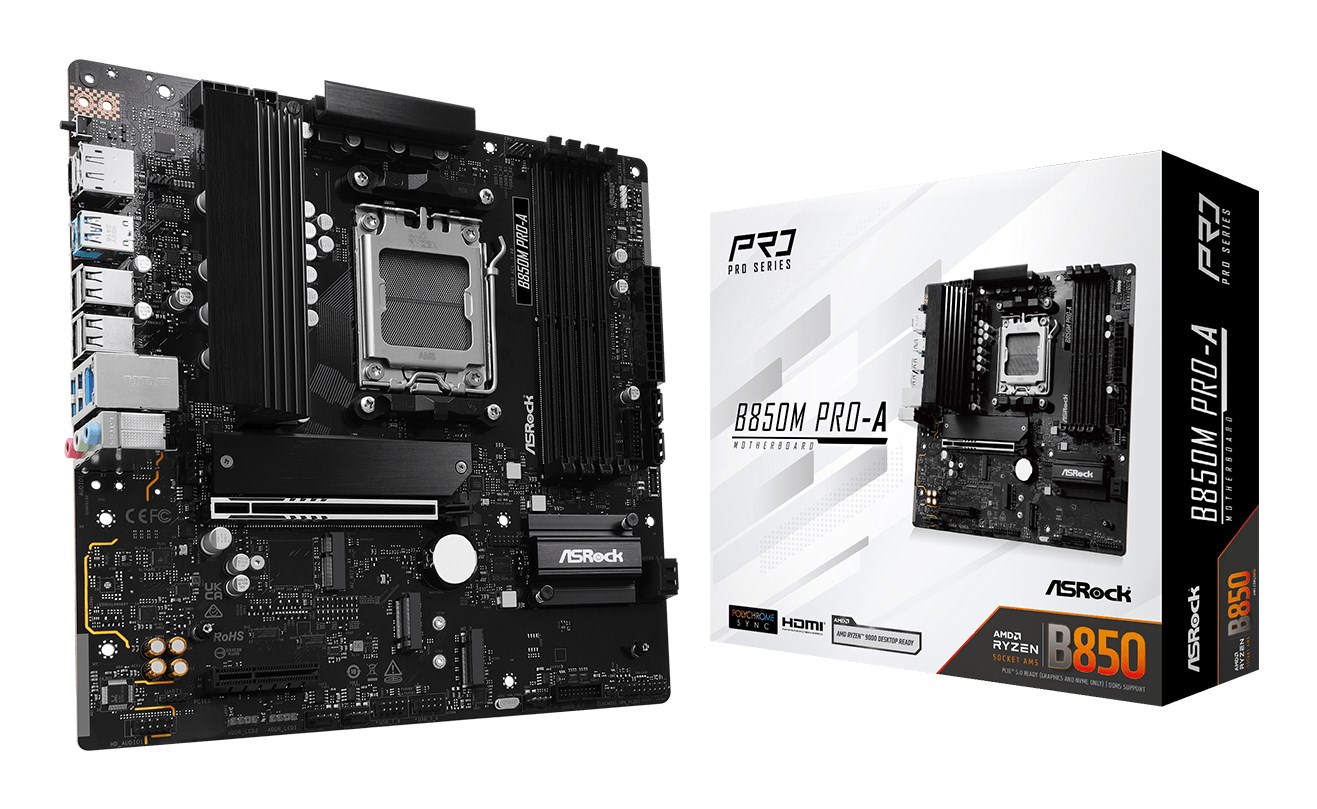

Asrock B850M Pro-A AMD B850 Socket AM5 micro ATX

Tuotetiedot
SKUPLYASRAM50053
Processor
Supported processor socketsSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 8000 Series
Processor socketSocket AM5
Graphics
Parallel processing technology supportNot supported
HDCPYes
Maximum resolution3840 x 2160 pixels
Features
Windows operating systems supportedWindows 11 x64
Motherboard form factormicro ATX
Motherboard chipsetAMD B850
Motherboard chipset familyAMD
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourBlack
Memory
Unbuffered memoryYes
Maximum internal memory256 GB
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
ECC сompatibilityECC & Non-ECC
Number of memory slots4
Weight & dimensions
Width244 mm
Depth244 mm
Network
LAN controllerDragon RTL8125BG
Top Wi-Fi standardNot available
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
Internal I/O
Number of SATA III connectors4
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Number of chassis fan connectors3
CPU fan connectorYes
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
TPM connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
12V power connectorYes
RGB LED pin headerYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of EPS power connectors (8-pin)1
BIOS
BIOS typeUEFI AMI
Packaging content
Cables includedSATA
Screws includedYes
Storage controllers
RAID levels1
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
RAID supportYes
Supported storage drive typesHDD & SSD
Number of storage drives supported7
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 2.0 ports quantity4
USB connector typeUSB Type-C
DisplayPorts quantity1
DisplayPort version1.4
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI version2.1
Headphone outputs3
Microphone inYes
Line-inYes
Expansion slots
Number of M.2 (M) slots3
PCI Express x16 (Gen 5.x) slots1
3rd M.2 highest PCI Express generation4.0
PCI Express x4 (Gen 4.x) slots1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
2nd M.2 largest key size2280
3rd M.2 largest key size2280
Safety warning
WarningsAvoid contact with liquids to prevent electronic damage.
