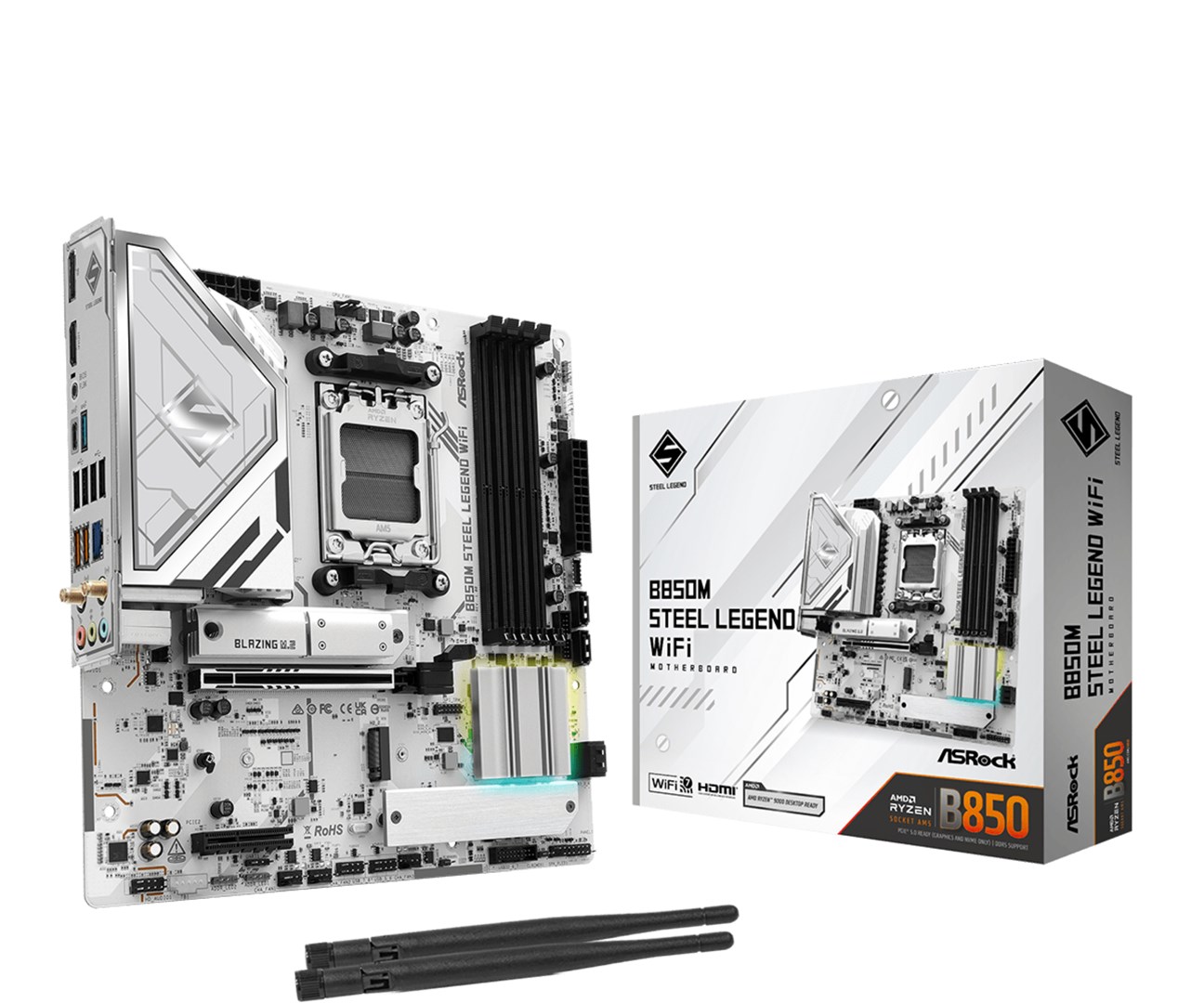

Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX

Tuotetiedot
SKUPLYASRAM50050
Processor
Supported processor socketsSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
Processor socketSocket AM5
Graphics
Maximum resolution3840 x 2160 pixels
Parallel processing technology supportNot supported
HDCPYes
Features
Audio output channels7.1 channels
Audio chipRealtek ALC1220
Motherboard chipset familyAMD
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
Motherboard chipsetAMD B850
Product colourWhite
Memory
Memory channelsDual-channel
Unbuffered memoryYes
Maximum internal memory256 GB
ECC сompatibilityECC & Non-ECC
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Weight & dimensions
Width244 mm
Depth244 mm
Network
Top Wi-Fi standardWi-Fi 7 (802.11be)
BluetoothYes
LAN controllerDragon RTL8125BG
Wi-Fi standardsWi-Fi 6E (802.11ax)
Ethernet LANYes
Wi-FiYes
Bluetooth version5.4
Ethernet interface type2.5 Gigabit Ethernet
Internal I/O
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
Number of SATA III connectors4
CPU fan connectorYes
TPM connectorYes
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
Number of chassis fan connectors3
Number of RGB LED pin headers1
Number of EPS power connectors (8-pin)1
Number of CPU fan connectors2
RGB LED pin headerYes
12V power connectorYes
BIOS
BIOS typeUEFI AMI
Packaging content
Cables includedSATA
Antenna includedYes
M.2 standoff includedYes
Screws includedYes
Storage controllers
RAID supportYes
Supported storage drive typesHDD & SSD
RAID levels0
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported7
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB connector typeUSB Type-C
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 2.0 ports quantity4
DisplayPorts quantity1
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
HDMI version2.1
Microphone inYes
WiFi-AP antenna jack2
Headphone outputs3
Line-inYes
Expansion slots
Number of M.2 (M) slots3
1st M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
PCI Express x16 (Gen 5.x) slots1
3rd M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
PCI Express x4 (Gen 4.x) slots1
2nd M.2 largest key size2280
Safety warning
WarningsAvoid contact with liquids to prevent electronic damage.
