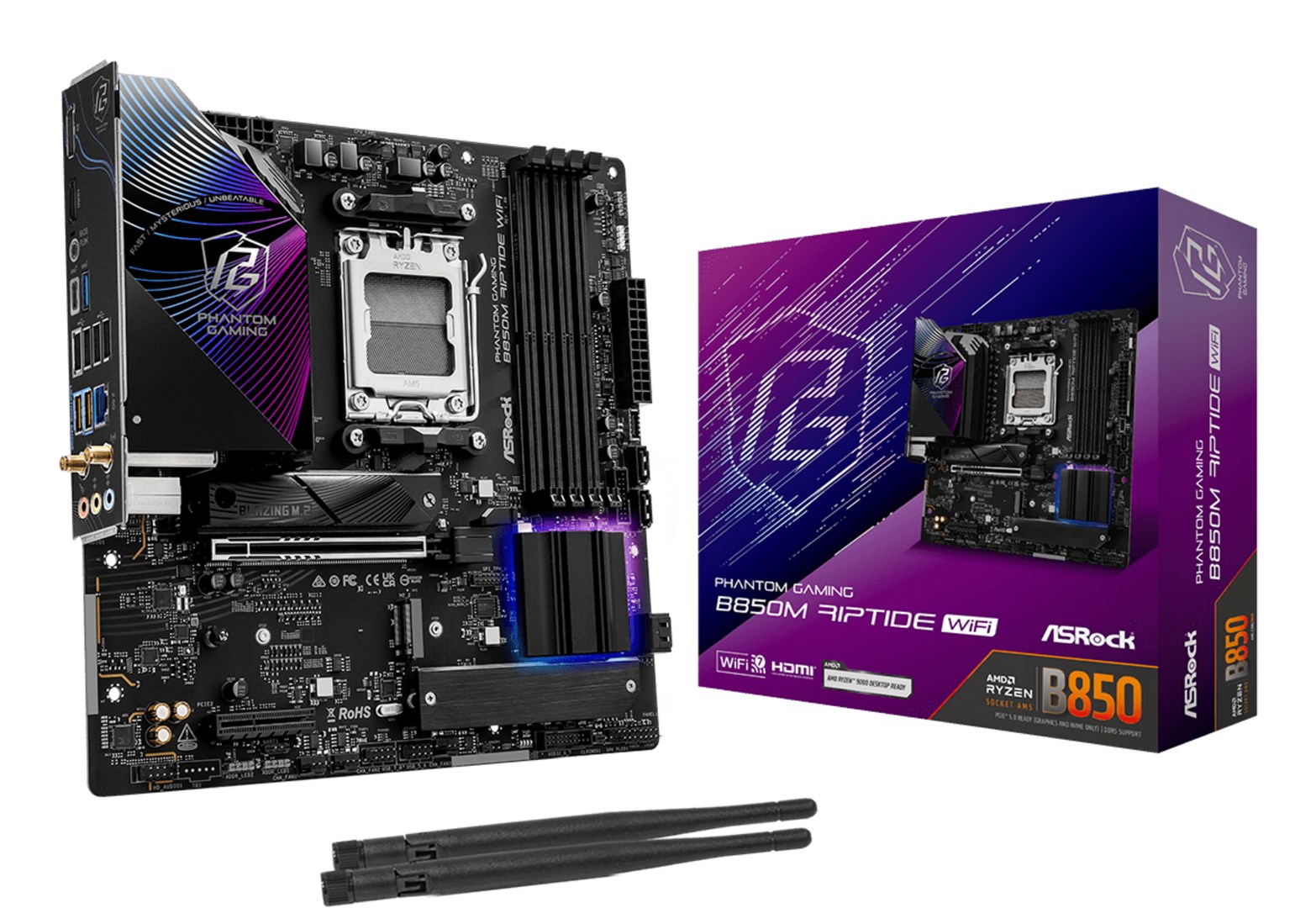

Asrock Phantom Gaming B850M Riptide WiFi AMD B850 Socket AM5 micro ATX

Tuotetiedot
SKUPLYASRAM50049
Processor
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 9000 Series
Processor socketSocket AM5
Supported processor socketsSocket AM5
Graphics
HDCPYes
Parallel processing technology supportNot supported
Maximum resolution3840 x 2160 pixels
Features
Motherboard chipsetAMD B850
Product colourBlack
Audio chipRealtek ALC1220
Motherboard chipset familyAMD
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Motherboard form factormicro ATX
Memory
Memory slots typeDIMM
ECC сompatibilityECC & Non-ECC
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Number of memory slots4
Unbuffered memoryYes
Maximum internal memory256 GB
Weight & dimensions
Depth244 mm
Width244 mm
Network
Ethernet LANYes
Wi-Fi standardsWi-Fi 5 (802.11ac)
Ethernet interface type2.5 Gigabit Ethernet
Top Wi-Fi standardWi-Fi 7 (802.11be)
Bluetooth version5.4
Wi-FiYes
BluetoothYes
LAN controllerDragon RTL8125BG
Internal I/O
RGB LED pin headerYes
Number of EPS power connectors (8-pin)1
12V power connectorYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
CPU fan connectorYes
TPM connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
USB 2.0 connectors2
Number of SATA III connectors4
Number of chassis fan connectors3
BIOS
BIOS typeUEFI AMI
Packaging content
Screws includedYes
M.2 standoff includedYes
Antenna includedYes
Cables includedSATA
Storage controllers
Number of storage drives supported7
RAID levels10
Supported storage drive typesHDD & SSD
RAID supportYes
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Headphone outputs3
WiFi-AP antenna jack2
HDMI version2.1
Line-inYes
Microphone inYes
USB connector typeUSB Type-C
USB 2.0 ports quantity4
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
Expansion slots
1st M.2 largest key size2580
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 5.x) slots1
PCI Express x8 (Gen 4.x) slots1
Number of M.2 (M) slots3
Safety warning
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
