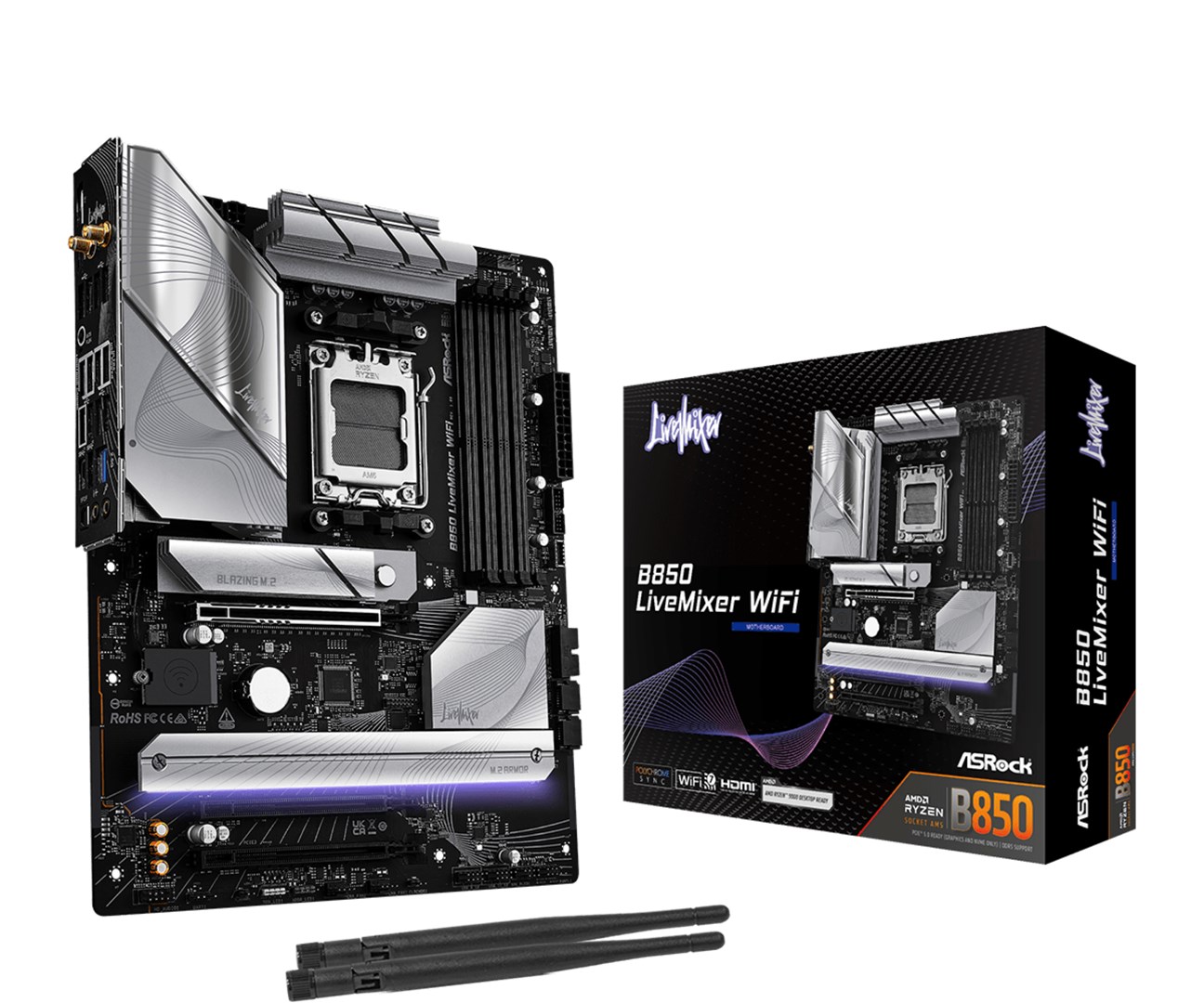

Asrock B850 LiveMixer WiFi AMD B850 Socket AM5 ATX

Tuotetiedot
SKUPLYASRAM50044
Processor
Processor socketSocket AM5
Supported processor socketsSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 8000 Series
Graphics
HDCPYes
Parallel processing technology supportNot supported
Maximum resolution3840 x 2160 pixels
Features
Product colourBlack
Audio chipRealtek ALC1220
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyAMD
Audio output channels7.1 channels
Motherboard chipsetAMD B850
Motherboard form factorATX
Memory
Number of memory slots4
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Unbuffered memoryYes
Maximum internal memory256 GB
ECC сompatibilityECC & Non-ECC
Weight & dimensions
Depth244 mm
Width305 mm
Network
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiYes
Bluetooth version5.4
Top Wi-Fi standardWi-Fi 7 (802.11be)
BluetoothYes
Wi-Fi standards802.11b
LAN controllerDragon RTL8125BG
Internal I/O
12V power connectorYes
RGB LED pin headerYes
CPU fan connectorYes
Front panel audio connectorYes
TPM connectorYes
EPS power connector (8-pin)Yes
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
Number of SATA III connectors2
Number of chassis fan connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
USB 3.2 Gen 2x2 connectors1
Number of RGB LED pin headers4
Number of water pump connectors1
BIOS
BIOS typeUEFI AMI
Packaging content
Antenna includedYes
Cables includedSATA
Storage controllers
Supported storage drive typesHDD & SSD
RAID supportYes
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
RAID levels10
Number of storage drives supported5
Rear panel I/O ports
Headphone outputs1
WiFi-AP antenna jack2
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
HDMI version2.1
Microphone inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB connector typeUSB Type-C
DisplayPorts quantity1
S/PDIF out portYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
USB 2.0 ports quantity8
Expansion slots
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
3rd M.2 largest key size2280
2nd M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation4.0
Safety warning
WarningsDispose of in accordance with local regulations for electronic waste.
