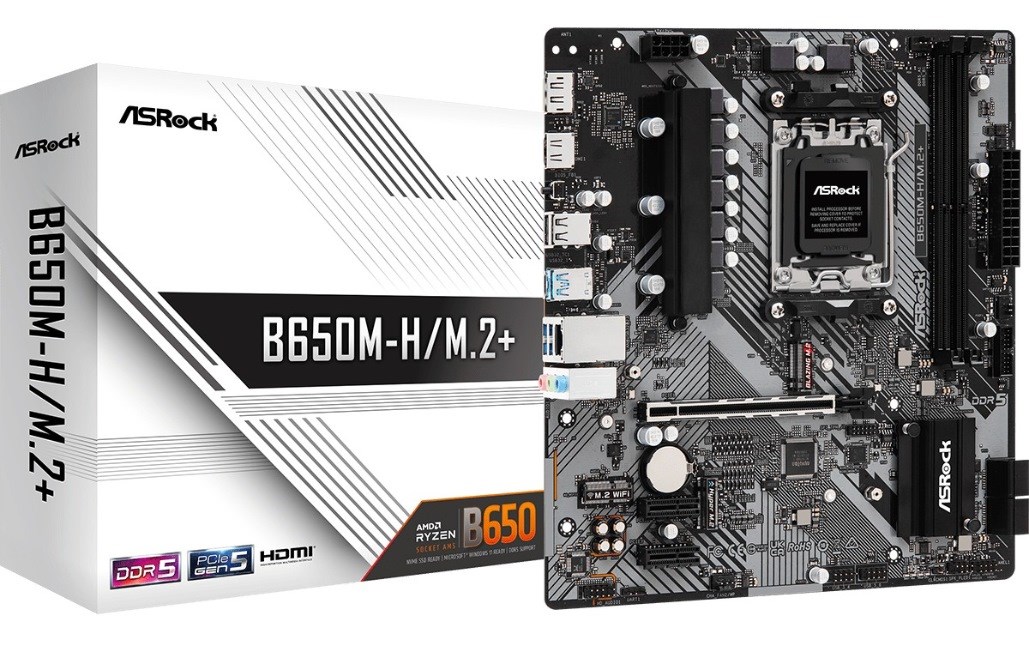

ASRock B650M-H/M.2+ motherboard

Tuotetiedot
SKUPLYASRAM50021
Processor
Processor socketSocket AM5
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen™ 7
Features
Audio chipRealtek ALC897
Windows operating systems supportedWindows 11 x64
Audio output channels7.1 channels
Motherboard form factormicro ATX
Motherboard chipsetAMD B650
Motherboard chipset familyAMD
Memory
Unbuffered memoryYes
Number of memory slots2
Maximum internal memory96 GB
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Weight & dimensions
Width244 mm
Depth226 mm
Network
Wi-FiNo
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek 8111H
Internal I/O
Number of SATA III connectors4
USB 2.0 connectors2
TPM connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
EPS power connector (8-pin)Yes
BIOS
BIOS typeUEFI AMI
Storage controllers
RAID supportYes
Supported storage drive interfacesM.2, SATA III
RAID levels0
Supported storage drive typesHDD & SSD
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
Back-to-BIOS buttonYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Line-inYes
DisplayPort version1.4
DisplayPorts quantity1
USB 2.0 ports quantity2
Microphone inYes
Expansion slots
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots1
PCI Express x1 (Gen 4.x) slots1
