Tuote

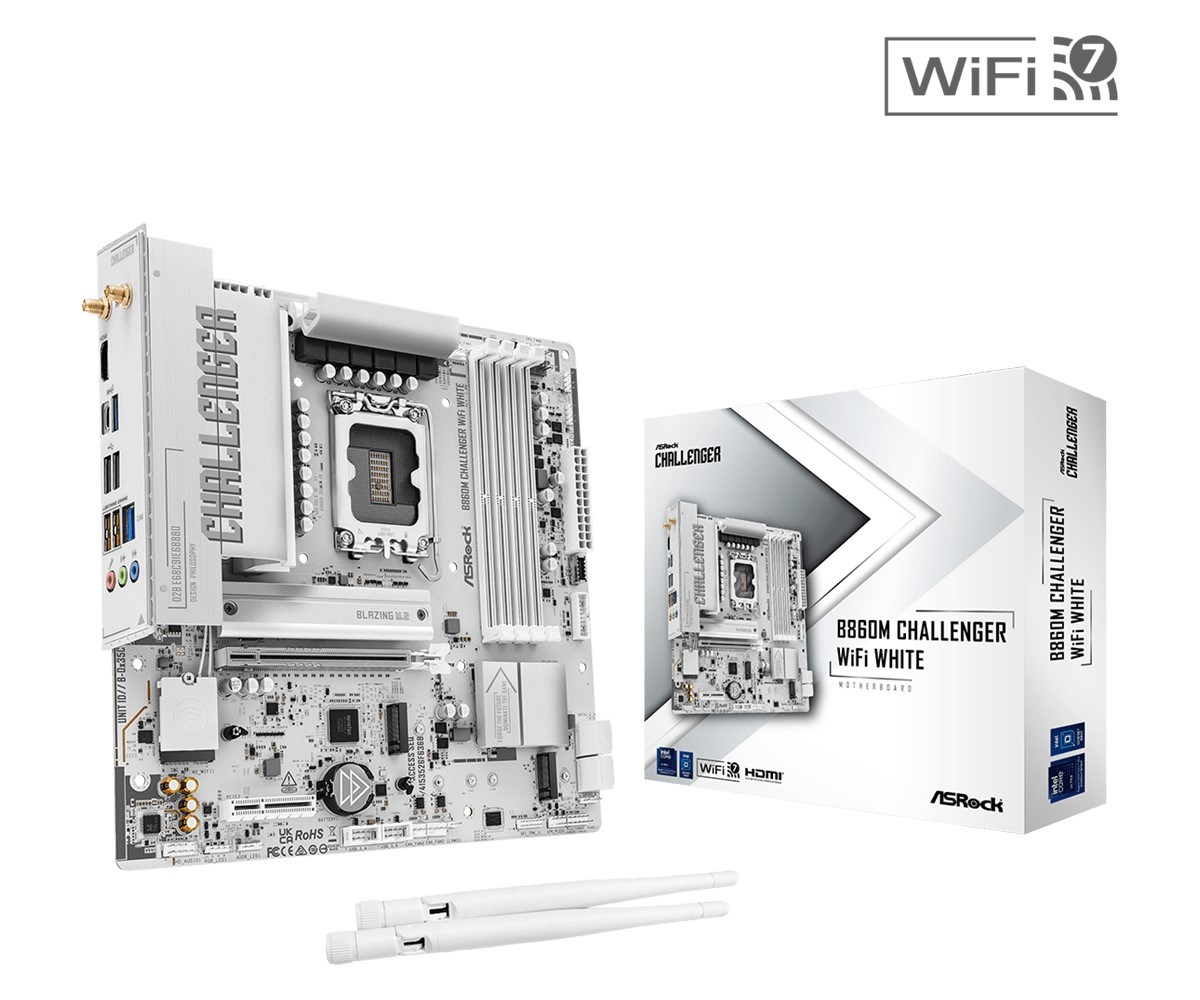

B860M CHALLENGER WIFI WHITE motherboard

Tuotetiedot
SKUPLYASR1850053
Processor
Compatible processor seriesIntel Core Ultra (Series 2)
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Graphics
HDCPYes
HDCP version2.3
Features
Motherboard chipsetIntel B860
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Audio chipRealtek ALC897
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Memory
Unbuffered memoryYes
ECC сompatibilityNon-ECC
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Memory slots typeDIMM
Maximum internal memory256 GB
Number of memory slots4
Weight & dimensions
Depth244 mm
Width244 mm
Network
MIMOYes
BluetoothYes
Ethernet LANYes
Wi-Fi standardsWi-Fi 4 (802.11n)
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerDragon RTL8125BG
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Bluetooth version5.4
MIMO typeMulti User MIMO
Internal I/O
Number of CPU fan connectors2
CPU fan connectorYes
USB 2.0 connectors2
TPM connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of SATA III connectors4
Number of RGB LED pin headers4
RGB LED pin headerYes
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
EPS power connector (8-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of chassis fan connectors3
BIOS
BIOS typeUEFI AMI
Packaging content
Cables includedSATA
Antenna includedYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Rear panel I/O ports
Line-inYes
Microphone inYes
Headphone outputs1
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
Expansion slots
Number of M.2 (M) slots1
PCI Express x4 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Huuda tuotetta / Osta tuote (Huutamalla tuotetta voit säästää jopa 79€ eli voit saada tuotteesi 34.5% alennuksella.)
