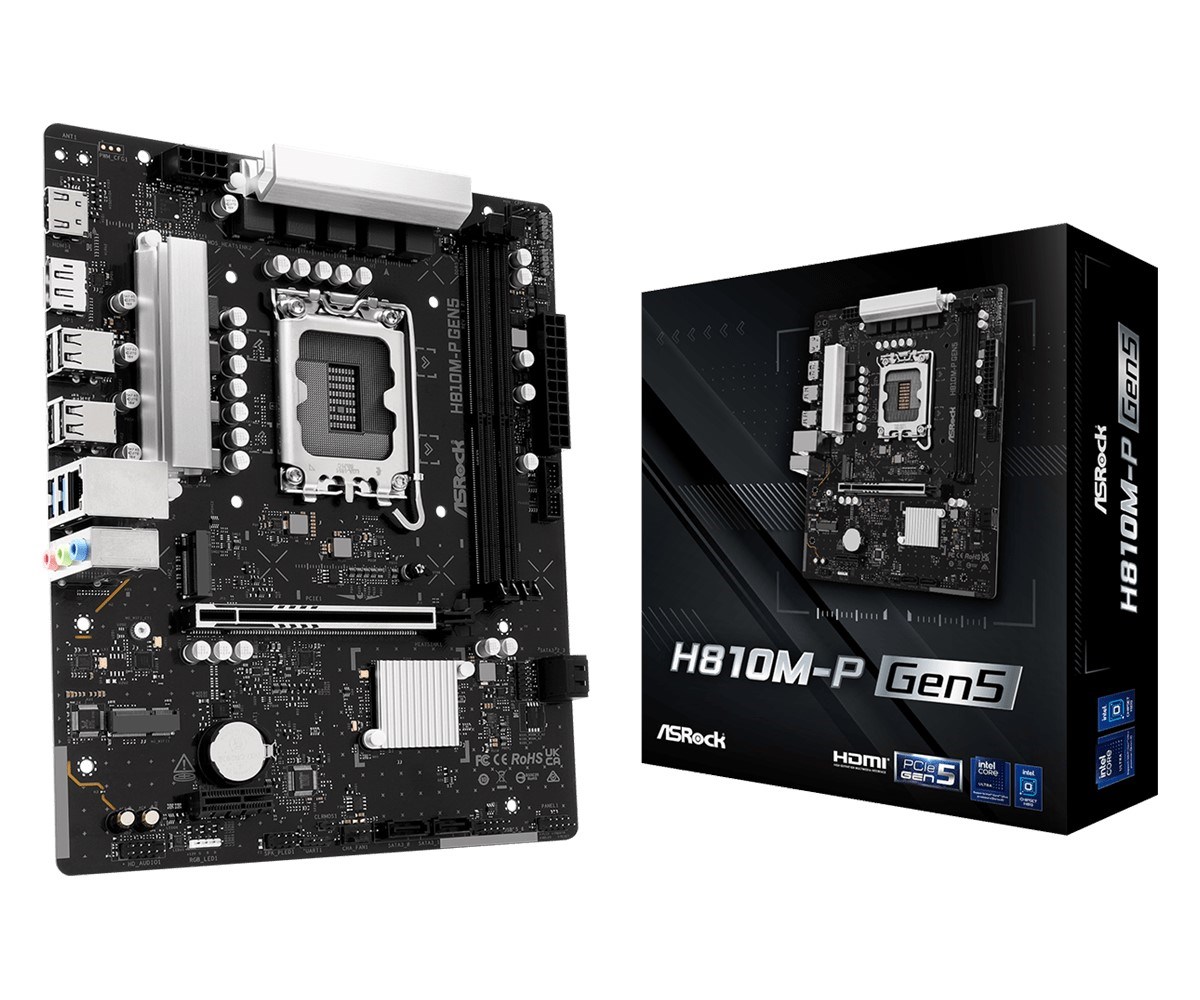

Asrock H810M-P GEN5 motherboard

Tuotetiedot
SKUPLYASR1850050
Processor
Compatible processor seriesIntel Core Ultra (Series 2)
Processor socketLGA 1851 (Socket V1)
Processor manufacturerIntel
Supported processor socketsLGA 1851
Graphics
HDCPYes
Maximum resolution7680 x 4320 pixels
HDCP version2.3
Features
Audio output channels7.1 channels
Motherboard chipsetIntel H810
Audio chipRealtek ALC897
Windows operating systems supportedWindows 11 x64
Power source typeATX
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Memory
Maximum internal memory128 GB
Unbuffered memoryYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR5-SDRAM
Supported memory clock speed (max)6400 MHz
ECC сompatibilityNon-ECC
Weight & dimensions
Depth193 mm
Width244 mm
Network
LAN controllerRealtek RTL8111H
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Internal I/O
Front panel audio connectorYes
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
RGB LED pin headerYes
USB 2.0 connectors2
Number of chassis fan connectors1
TPM connectorYes
CPU fan connectorYes
Number of CPU fan connectors1
Number of EPS power connectors (8-pin)1
BIOS
BIOS typeUEFI AMI
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported5
Rear panel I/O ports
HDMI version2.1
Line-inNo
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
USB 2.0 ports quantity4
Headphone outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
DisplayPort version1.4
DisplayPorts quantity1
Expansion slots
PCI Express x1 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots1
