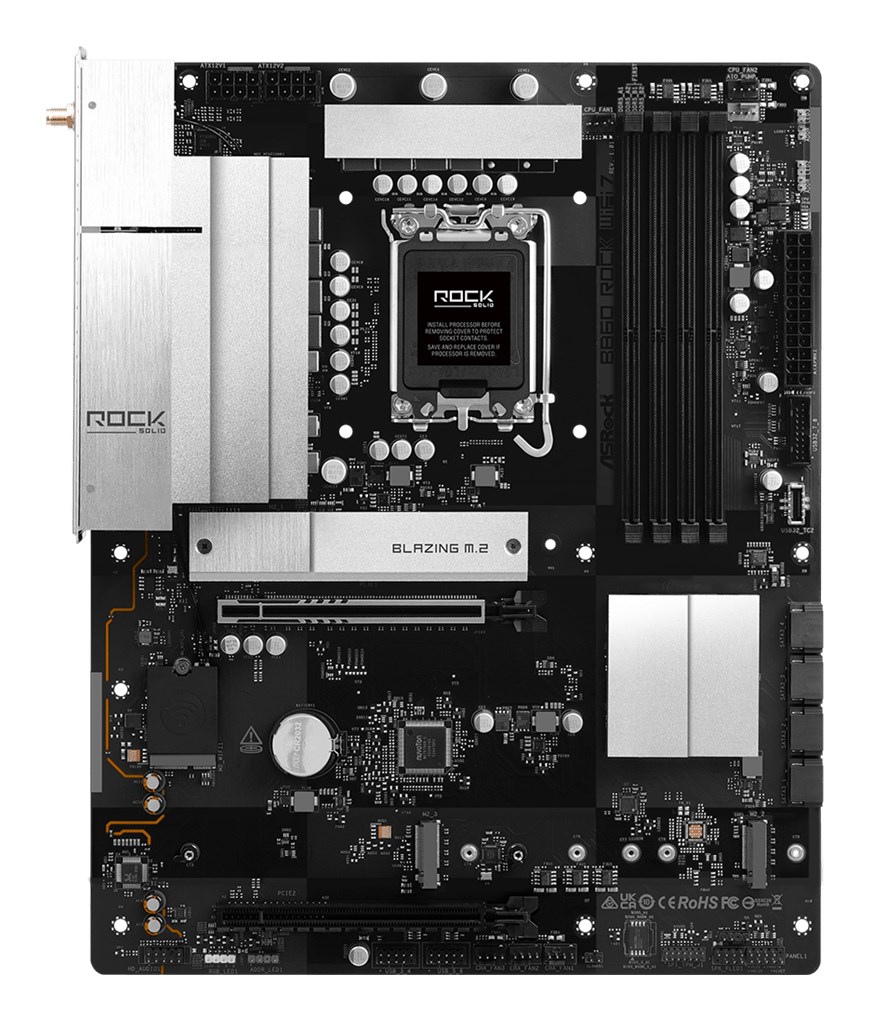

Asrock B860 Rock WiFi 7 Intel B860 LGA 1851 (Socket V1) ATX

Tuotetiedot
SKUPLYASR1850049
Technical details
Compliance certificatesCE
Processor
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Graphics
HDCPYes
Maximum resolution3840 x 2160 pixels
Parallel processing technology supportNot supported
HDCP version2.3
High Dynamic Range (HDR) supportedYes
Features
Motherboard form factorATX
Audio output channels7.1 channels
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64
Audio chipRealtek ALC897
Motherboard chipsetIntel B860
Product colourBlack
Memory
Memory channelsDual-channel
Unbuffered memoryYes
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Maximum internal memory256 GB
ECC сompatibilityNon-ECC
Supported memory clock speed (max)8666 MHz
Weight & dimensions
Depth244 mm
Width305 mm
Network
Wi-Fi standards802.11a
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet LANYes
Bluetooth version5.4
Ethernet interface typeGigabit Ethernet
LAN controllerDragon RTL8125BG
Wi-FiYes
BluetoothYes
Internal I/O
CPU fan connectorYes
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors2
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
TPM connectorYes
Number of SATA III connectors4
12V power connectorYes
Number of chassis fan connectors4
RGB LED pin headerYes
Number of water pump connectors1
Number of CPU fan connectors2
Number of RGB LED pin headers1
Number of EPS power connectors (8-pin)2
BIOS
BIOS typeUEFI AMI
Packaging content
Cables includedSATA
Antenna includedYes
Storage controllers
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
RAID levels1
RAID supportYes
Supported storage drive typesHDD & SSD
Number of storage drives supported7
Rear panel I/O ports
USB connector typeUSB Type-C
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
HDMI version2.1
Ethernet LAN (RJ-45) ports1
WiFi-AP antenna jack2
HDMI ports quantity1
Headphone outputs3
Line-inYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Microphone inYes
Expansion slots
Number of M.2 (M) slots3
PCI Express x16 (Gen 4.x) slots1
3rd M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
1st M.2 largest key size2280
3rd M.2 largest key size2280
PCI Express x16 (Gen 5.x) slots1
