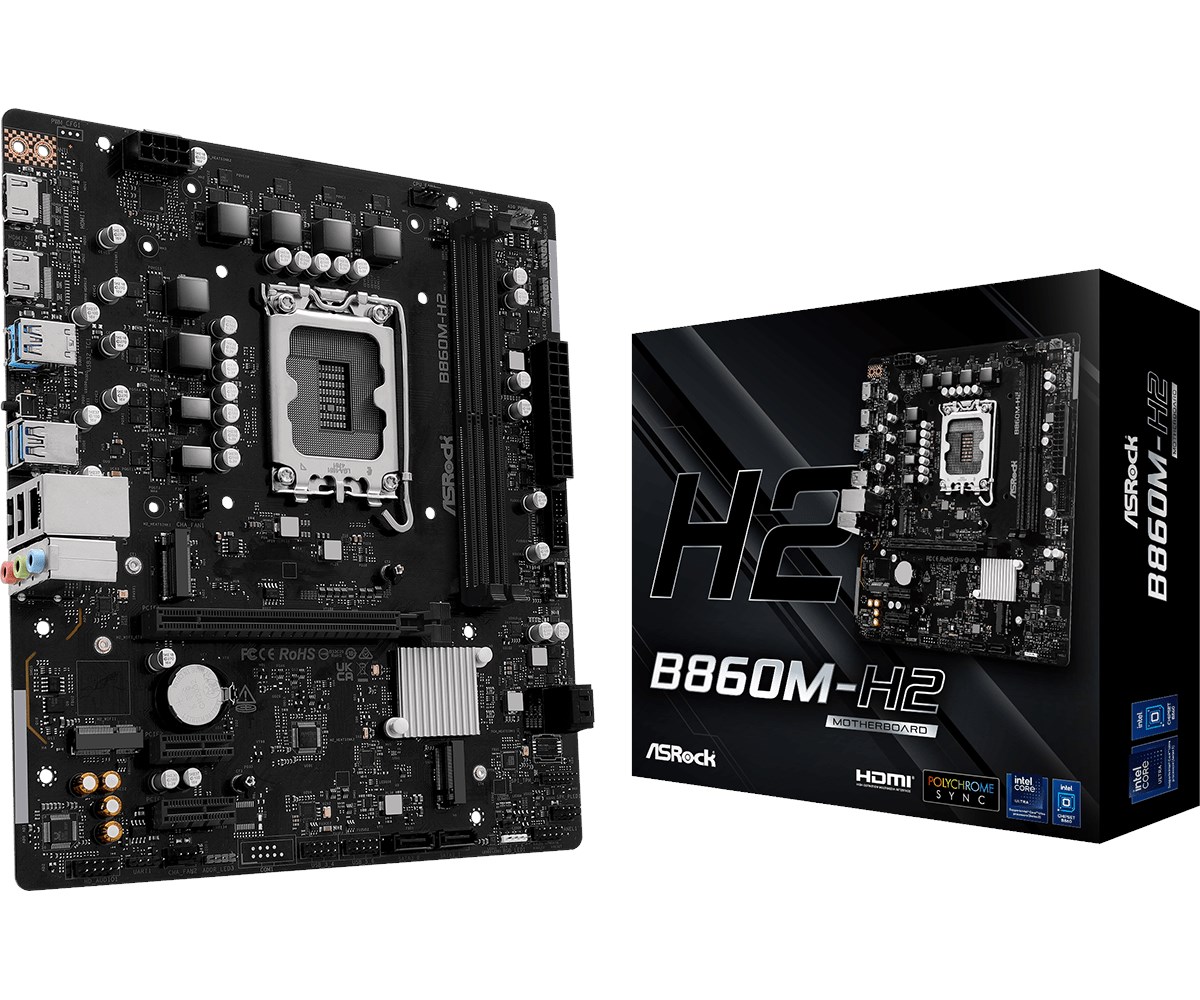

ASRock B860M-H2 motherboard

Tuotetiedot
SKUPLYASR1850034
Processor
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Supported processor socketsLGA 1851
Features
Audio output channels7.1 channels
Audio chipRealtek ALC897
Motherboard chipsetIntel B860
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
Memory
Unbuffered memoryYes
Maximum internal memory128 GB
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Number of memory slots2
Weight & dimensions
Width244 mm
Depth211 mm
Network
BluetoothNo
LAN controllerRealtek 8111H
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
Internal I/O
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of USB 3.2 Gen 2 Type-C ports 1
RGB LED pin headerYes
TPM connectorYes
CPU fan connectorYes
Number of water pump connectors1
Number of RGB LED pin headers1
Number of CPU fan connectors1
Number of chassis fan connectors2
12V power connectorYes
BIOS
BIOS typeUEFI AMI
Storage controllers
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
RAID levels5
Supported storage drive typesHDD & SSD
RAID supportYes
Rear panel I/O ports
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
USB connector typeUSB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
Antennas quantity2
HDMI ports quantity2
Flashback BIOS buttonYes
HDMI version2.1
Expansion slots
Number of M.2 (M) slots2
Number of SATA III connectors4
PCI Express x16 (Gen 4.x) slots1
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
Safety warning
WarningsWhen disposing of the product, follow local regulations for the recycling of electronics.
