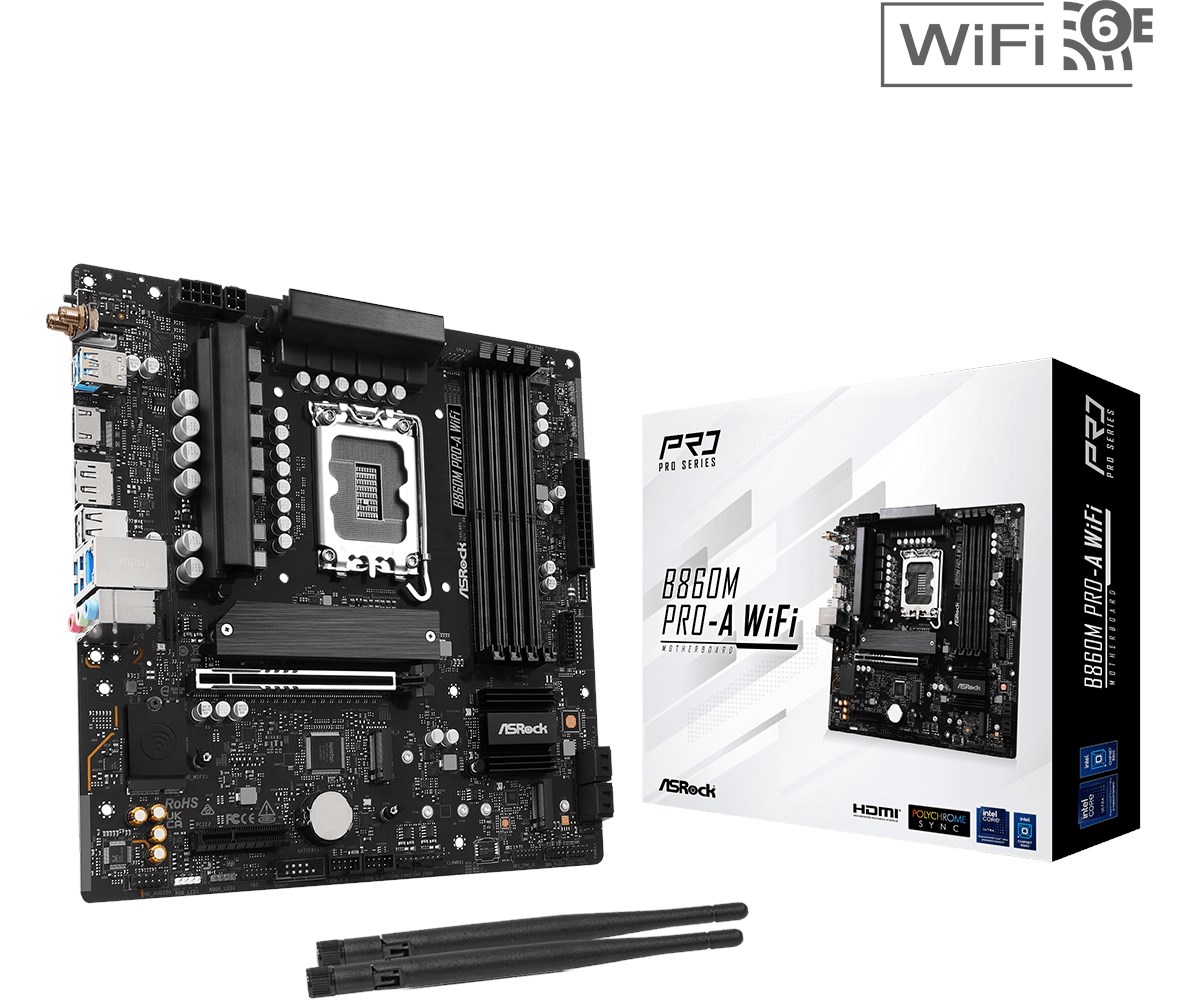

ASRock B860M Pro-A WiFi Motherboard

Tuotetiedot
SKUPLYASR1850031
Processor
Processor manufacturerIntel
Supported processor socketsLGA 1851
Processor socketLGA 1851 (Socket V1)
Features
Windows operating systems supportedWindows 11 x64
Motherboard chipsetIntel B860
Audio output channels7.1 channels
Motherboard form factormicro ATX
Audio chipRealtek ALC897
Motherboard chipset familyIntel
Memory
Memory channelsDual-channel
Unbuffered memoryYes
ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Number of memory slots4
Weight & dimensions
Width244 mm
Depth244 mm
Network
LAN controllerDragon RTL8125BG
BluetoothYes
Wi-FiYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
USB 2.0 connectors2
TPM connectorYes
CPU fan connectorYes
Number of water pump connectors1
Number of chassis fan connectors3
Number of CPU fan connectors2
RGB LED pin headerYes
12V power connectorYes
BIOS
BIOS typeUEFI AMI
Storage controllers
Supported storage drive typesHDD & SSD
RAID levels1
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
RAID supportYes
Rear panel I/O ports
HDMI ports quantity2
USB 2.0 ports quantity2
HDMI version2.1
Ethernet LAN (RJ-45) ports1
Antennas quantity2
USB connector typeUSB Type-C
Flashback BIOS buttonYes
Number of USB 3.2 Gen 1 ports3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Expansion slots
Number of SATA III connectors4
Number of M.2 (M) slots3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
Safety warning
WarningsDo not open or modify the motherboard to prevent damage.
