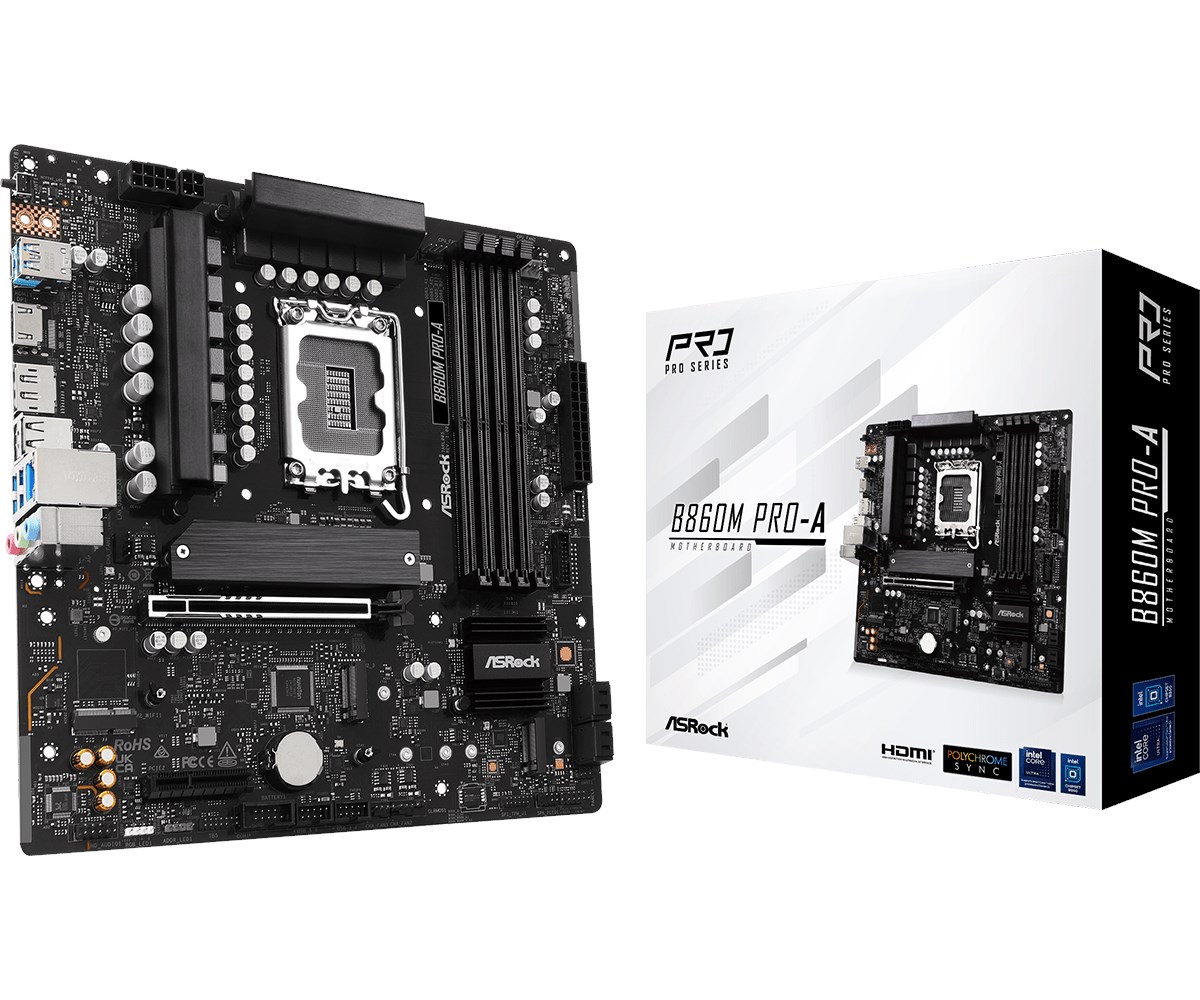

ASRock B860M Pro-A motherboard

Tuotetiedot
SKUPLYASR1850030
Processor
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Supported processor socketsLGA 1851
Features
Motherboard chipsetIntel B860
Audio output channels7.1 channels
Audio chipRealtek ALC897
Windows operating systems supportedWindows 11 x64
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Memory
Unbuffered memoryYes
ECC сompatibilityNon-ECC
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Maximum internal memory256 GB
Weight & dimensions
Depth244 mm
Width244 mm
Network
BluetoothNo
LAN controllerDragon RTL8125BG
Ethernet LANYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Wi-FiNo
Ethernet interface type2.5 Gigabit Ethernet
Internal I/O
ATX Power connector (24-pin)Yes
Number of CPU fan connectors2
Number of water pump connectors1
CPU fan connectorYes
TPM connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors2
Number of RGB LED pin headers1
RGB LED pin headerYes
Number of SATA III connectors4
12V power connectorYes
Number of chassis fan connectors3
BIOS
BIOS typeUEFI AMI
Storage controllers
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
Rear panel I/O ports
Number of USB 3.2 Gen 1 ports3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Antennas quantity2
DisplayPorts quantity1
HDMI version2.1
USB connector typeUSB Type-C
USB 2.0 ports quantity2
Flashback BIOS buttonYes
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
Expansion slots
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
PCI Express x16 (Gen 4.x) slots1
1st M.2 largest key size2280
Number of SATA III connectors4
Safety warning
WarningsDo not open or modify the motherboard to prevent damage.
