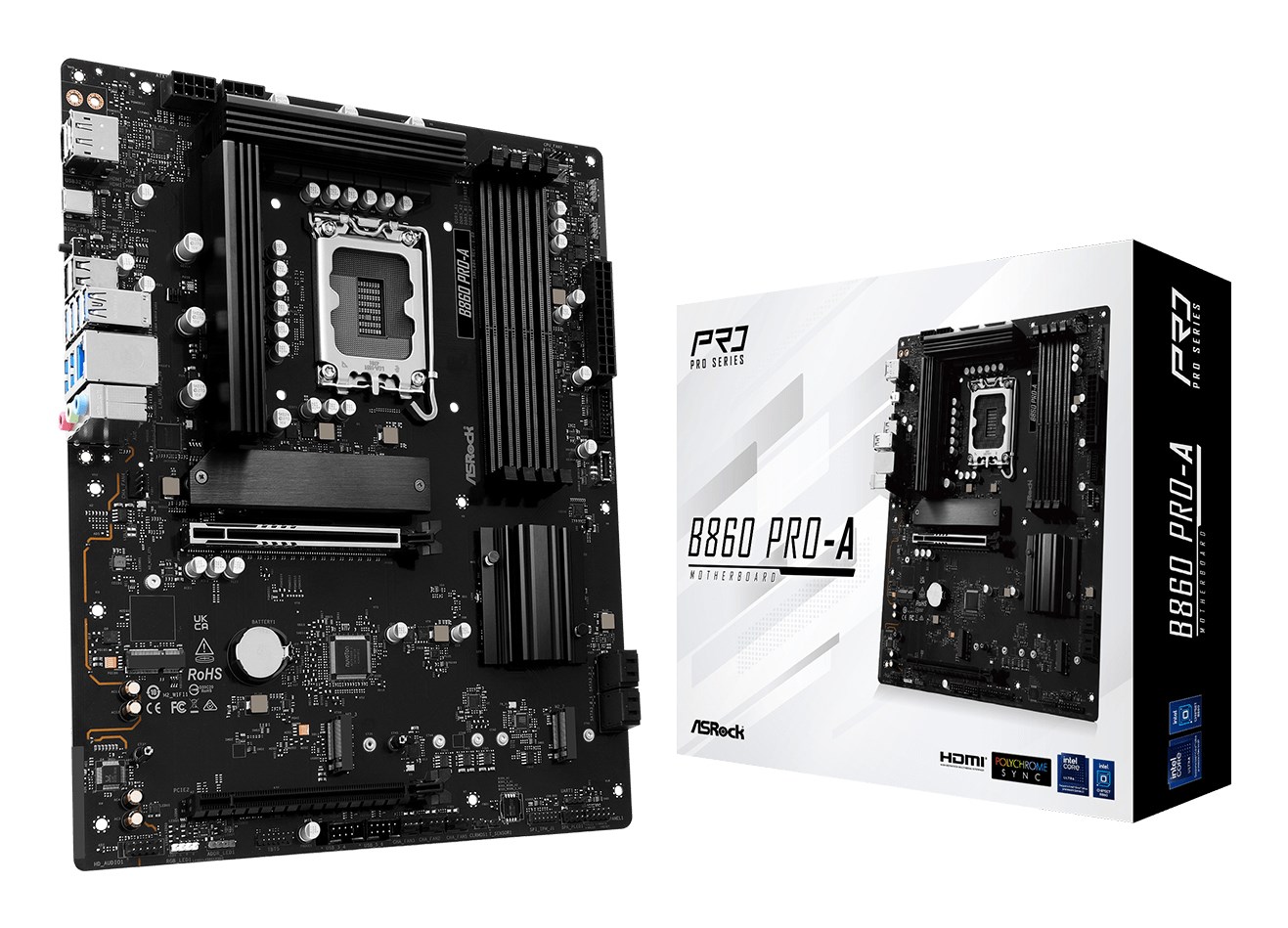

Asrock B860 Pro-A Intel B860 LGA 1851 (Socket V1) ATX

Tuotetiedot
SKUPLYASR1850023
Processor
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Graphics
Graphics card familyIntel
On-board graphics cardYes
Graphics cardIntel® UHD Graphics
Features
Audio chipRealtek ALC897
Motherboard chipsetIntel B860
Windows operating systems supportedWindows 11 x64
Audio output channels7.1 channels
Motherboard chipset familyIntel
Motherboard form factorATX
Memory
Number of memory slots4
Memory channelsDual-channel
Maximum internal memory256 GB
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Unbuffered memoryYes
ECC сompatibilityNon-ECC
Weight & dimensions
Depth244 mm
Width305 mm
Network
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerDragon RTL8125BG
Ethernet LANYes
Wi-FiNo
Internal I/O
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Number of chassis fan connectors4
CPU fan connectorYes
ATX Power connector (24-pin)Yes
TPM connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
USB 2.0 connectors2
RGB LED pin headerYes
Number of CPU fan connectors2
Number of RGB LED pin headers4
Number of EPS power connectors (8-pin)2
BIOS
BIOS typeEFI AMI
Packaging content
Cables includedSATA
Screws includedYes
Storage controllers
RAID levels1
Number of storage drives supported7
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Rear panel I/O ports
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
Line-inYes
Microphone inYes
DisplayPort version1.4
DisplayPorts quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Expansion slots
Number of M.2 (M) slots3
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Safety warning
WarningsWhen disposing of the product, follow local regulations for the recycling of electronics.
