Tuote

ASRock Z890 Z890 Lightning WiFi Motherboard

Tuotetiedot
SKUPLYASR1850007
Processor
Processor socketLGA1851
Processor manufacturerIntel
Maximum number of SMP processors1
Compatible processor seriesIntel Core Ultra (Series 2)
Features
Motherboard chipset familyIntel
Audio chipRealtek ALC1220
Motherboard chipsetIntel Z890
Windows operating systems supportedWindows 10 x64
Motherboard form factorATX
Audio output channels7.1 channels
Memory
Unbuffered memoryYes
Memory slots typeDIMM
Maximum internal memory256 GB
ECC сompatibilityNon-ECC
Supported memory typesDDR5-SDRAM
Intel Extreme Memory Profile (XMP) version3.0
Number of memory slots4
Memory channelsDual-channel
Weight & dimensions
Width305 mm
Depth244 mm
Network
Wi-FiYes
Wi-Fi standardsIEEE 802.11g
Wi-Fi frequency2,4 Ghz / 5 GHz / 6 GHz
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerKiller E3100G
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wireless statisticsYes
Internal I/O
CPU fan connector2
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Pump connector1
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
Number of SATA III connectors4
TPM connectorYes
Thunderbolt headers1
Front panel audio connectorYes
8-pin power connector 12 V2
Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports 1
AIO pump fan connector1
Chassis fan connector (4-pin)4
BIOS
BIOS typeUEFI AMI
Packaging content
Wi-Fi antennaYes
Antennas quantity2
Cables includedThermistor Cable x 1
MotherboardYes
Storage controllers
Supported storage drive interfacesM.2, SATA III
RAID supportYes
RAID levels10
Supported storage drive typesHDD & SSD

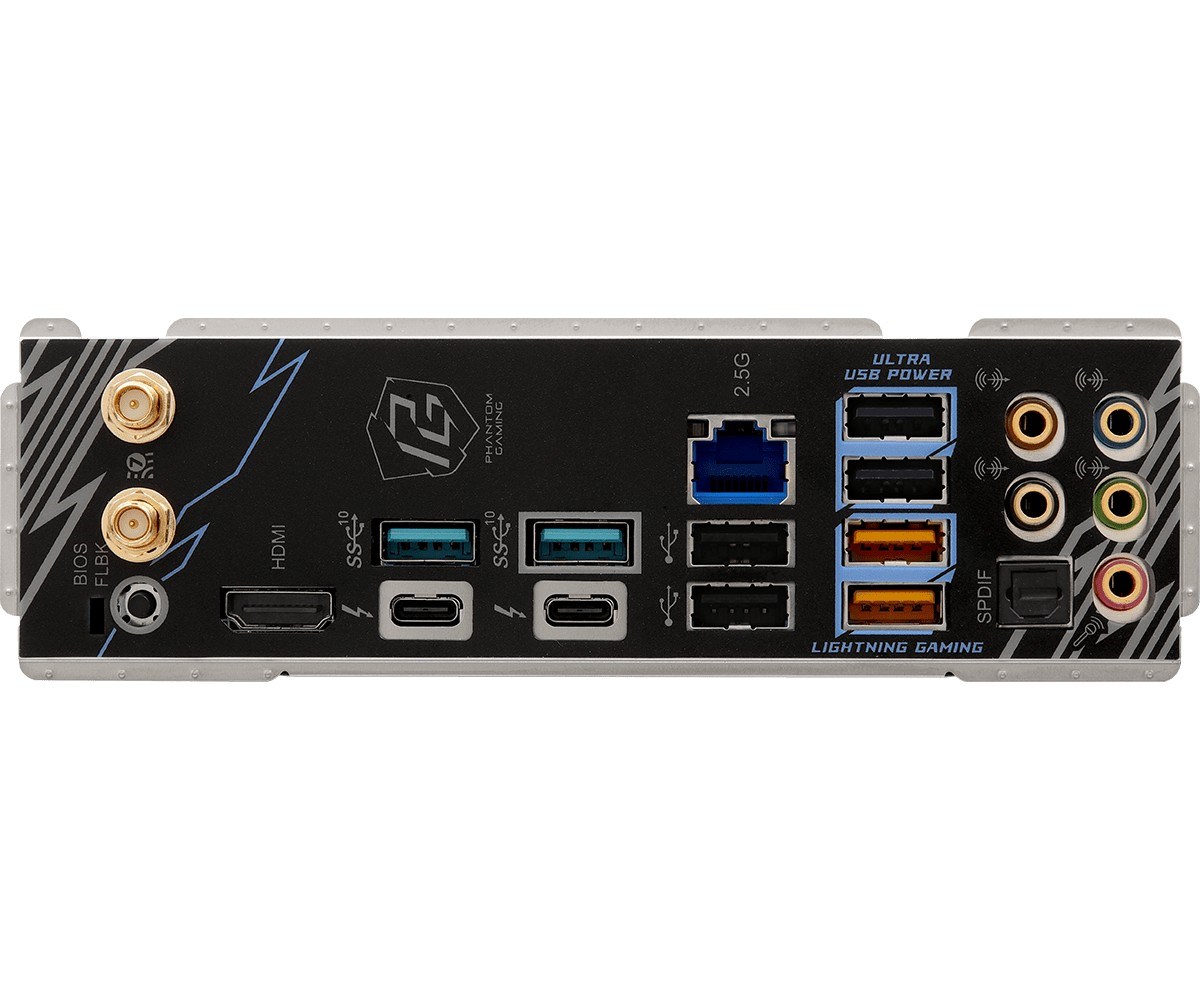

Rear panel I/O ports
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Microphone inYes
USB 2.0 Type-A ports quantity2
SPDIF optical outputY
Number of Thunderbolt 4 USB-C ports2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
Number of antenna connectors2
Headphone outputs1
Expansion slots
Number of M.2 (M) slots1
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 4.x) slots1
Certificates
CertificatesFCC
Huuda tuotetta / Osta tuote (Huutamalla tuotetta voit säästää jopa 74€ eli voit saada tuotteesi 21.8% alennuksella.)
